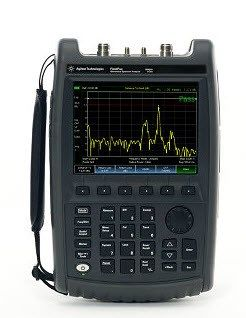

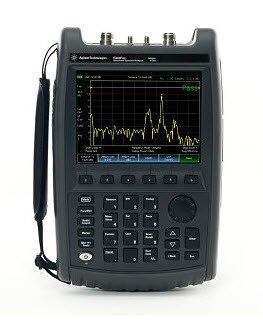

Agilent Technologies - FieldFox Handheld Analyzer
Manufactured by Agilent Technologies
FieldFox Handheld Portfolio Sets New Standards in Ruggedness and Ease-of-Use
Measuring up and earning a spot in your kit is the driving idea behind Agilent’s FieldFox portable analyzers, available in frequencies up to 26.5 GHz. Carry the precision of our microwave models: they deliver Agilent-quality measurements wherever you need to go. Boost your readiness with an RF unit: every operating mode is flexible enough to meet the needs of novices and experts alike. And count on the durability of handheld analyzers designed to withstand your toughest working conditions.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features of FieldFox Handheld Analyzer
General Specifications
There are no General Specifications available.
Series Modals
Agilent Technologies - N9917A
[+] View Model Specifications| Weight | 3 kg |
| Additional Model Specifications | [*] 18 GHz
[*] Base is a cable and antenna analyzer [*] Optional spectrum analyzer, vector network analyzer, built-in power meter, vector voltmeter [*] Compliant with MIL-PRF-28800F Class 2 |
Agilent Technologies - N9918A
[+] View Model Specifications| Weight | 3 kg |
| Additional Model Specifications | [*] 26.5 GHz
[*] Base is a cable and antenna analyzer [*] Optional spectrum analyzer, vector network analyzer, built-in power meter, vector voltmeter [*] Compliant with MIL-PRF-28800F Class 2 |
Agilent Technologies - N9935A
[+] View Model Specifications| Weight | 3 kg |
| Additional Model Specifications | Spectrum analyzer
5 kHz to 9 GHz ± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55 °C (14 to 131 °F) Spur-free dynamic range ? 105 dB Tracking generator 30 kHz to 9 GHz VSWR and reflection measurements Power and pulse measurements Channel power, occupied bandwidth and adjacent channel power ratio Average power, peak power, and pulse characterization with USB power sensors Built-in power meter: 5 kHz to 9 GHz FieldFox instrument attributes Remote control via iPad or iPhone Standard 3-year warranty Battery life: 3.5 hours; weight: 3.0 kg or 6.6 lbs Operating temperature: -10 to +55 °C (14 to 131 °F) |
Agilent Technologies - N9936A
[+] View Model Specifications| Weight | 3 |
| Additional Model Specifications | [*] 14 GHz
[*]Base is a spectrum analyzer [*]Optional full band tracking generator and preamplifier, interference analyzer and built-in power meter [*]Compliant with MIL-PRF-28800F Class 2 [*]3.0 kg or 6.6 lbs |
Agilent Technologies - N9938A
[+] View Model Specifications| Weight | 3 kg |
| Additional Model Specifications | [*] 26.5 GHz
[*] Base is a spectrum analyzer [*] Optional full band tracking generator and preamplifier, interference analyzer and built-in power meter [*] Compliant with MIL-PRF-28800F Class 2 |
