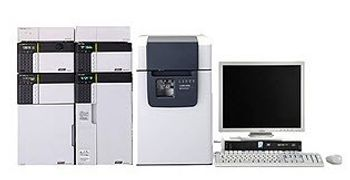

Shimadzu - UF-Amino Station
Manufactured by Shimadzu
No Documents
New UF-Amino Station Offers Simultaneous Multicomponent Analysis for Enhanced Throughput - Analyze 38 amino acid components in just nine minutes!
Analyze 38 amino acid components in just nine minutes!
Two major problems exist with traditional amino acid analysis techniques. The first technique (ion-exchange chromatography with postcolumn derivatization) allows many components to be analyzed at once but the method run times are long. The second technique (reverse-phase HPLC with pre-column derivatization) enables faster analysis but the number of analyzed components is limited. As a result, chemists are forced to make a decision to either analyze a large number of components or have a fast method.
UF-Amino Station overcomes these limitations. Jointly developed by Shimadzu and Ajinomoto Co., Inc., it features a special-purpose, fast analysis column and a LCMS-2020 mass spectrometer, which supports ultra-fast analysis speeds, to achieve the simultaneous analysis of 38 amino acid and amino acid-related components* in just nine minutes. Additionally, it automates the derivatization reaction to eliminate the need for cumbersome pretreatment procedures by manual operation.
UF-Amino Station is an excellent tool for the analysis of food products, such as meat and fermented foods containing many impurity components, and for the biochemical analysis of culture fluid.
Two major problems exist with traditional amino acid analysis techniques. The first technique (ion-exchange chromatography with postcolumn derivatization) allows many components to be analyzed at once but the method run times are long. The second technique (reverse-phase HPLC with pre-column derivatization) enables faster analysis but the number of analyzed components is limited. As a result, chemists are forced to make a decision to either analyze a large number of components or have a fast method.
UF-Amino Station overcomes these limitations. Jointly developed by Shimadzu and Ajinomoto Co., Inc., it features a special-purpose, fast analysis column and a LCMS-2020 mass spectrometer, which supports ultra-fast analysis speeds, to achieve the simultaneous analysis of 38 amino acid and amino acid-related components* in just nine minutes. Additionally, it automates the derivatization reaction to eliminate the need for cumbersome pretreatment procedures by manual operation.
UF-Amino Station is an excellent tool for the analysis of food products, such as meat and fermented foods containing many impurity components, and for the biochemical analysis of culture fluid.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of UF-Amino Station
Fast Simultaneous Analysis of 38 Amino Acid Components in Nine Minutes
The combination of a special-purpose, fast-analysis column and LC/MS allows for shorter analysis times than conventional techniques.
LC/MS Offers Superb Detection Selectivity
Using an LC/MS instrument provides accurate analytical results even with difficult samples containing many impurities.
AmiNaviTM Software Simplifies Operation
Analyze a sample quickly and efficiently with AmiNavi dedicated software, which provides complete support for the full range of analysis operations.
Automated Derivatization Improves Efficiency and Reliability
A fully automated derivatization can occur by using an autosampler to automatically pretreat the sample, eliminating concerns about human error during the derivatization process.
Applications
The high selectivity of UF-Amino Station permits the analysis of amino acids in meat extract, which is difficult by PTC precolumn derivatization and UV detection due to the effects of impurity components.
