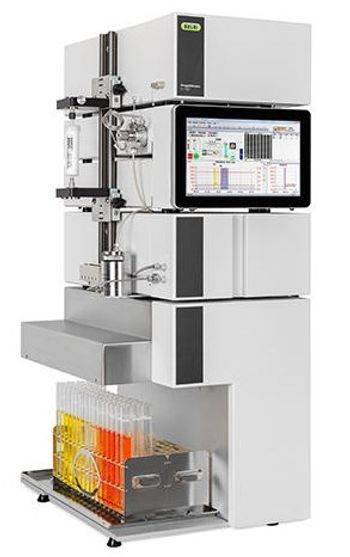

BUCHI Corporation - PrepChrom C-700

Manufactured by  BUCHI Corporation
Follow this Equipment

All-in-one purification system

The PrepChrom C-700 offers an interactive user interface, and simultaneously enables an easy and fast purification process. The high performance preparative chromatography system allows running both flash and preparative HPLC separations.
Active Questions & AnswersAsk a Question

There are no current Discussions

Preparative HPLC Service ProvidersView All (16)

Request Support
Features of PrepChrom C-700
Accelerated purification
  • Flash chromatography separation and subsequent preparative HPLC purification of all relevant fractions on the same system
  • Save time when optimizing the separation of complex samples using up to 4 solvents
  • Detect all compounds at once with DAD and optional ELSD
  • Fast separations on high efficiency columns                    High performance
  • Full separation optimization capabilities with quaternary gradient functionality (HPLC pump technology)
  • High efficiency preparative HPLC columns (10 or 15 µm) can be run at a pressure of up to 100 bar (1450 psi)
  • Optimal fraction purity resulting from a highly selective separation                    Easy to use
  • Perform prep HPLC as easily as flash chromatography
  • Intuitive graphical user interface designed for purification applications
  • Easy connection of flash cartridges, glass columns or preparative HPLC columns
  • Multilanguage user interface with touch screen
    • General Specifications
    Depth 495 mm
    Height890 mm
    Width 355 mm
    Power Requirements 110 - 120 V / 220 - 240 V ± 10 %
    Peak Power350 W (max)
    Weight53 kg
    Additional Specifications

    Fuse 110 - 120 V:
    1 x TT5A L 250V
    4 x TT2.5A L250V
    Fuse 220 - 240 V:
    1 x TT2.5A L 250V
    4 x TT1.25A L250V
    Frequency:
    50 / 60 Hz
    Degree of protection:
    IP20
    Overvoltage category:
    II
    Pollution degree:
    2
    Pressure range:
    up to 100 bar (1450 psi)
    Flow rate range:
    5 - 250 mL/min
    Flow rate accuracy:
    [i]5 - 10 mL/min:[/i] > 4.5 %
    [i]10 - 20 mL/min:[/i] < 4.5 %
    [i]20 - 200 mL/min:[/i] < 3.5 %
    [i]200 - 250 mL/min:[/i] < 4.0 %
    Flow rate repeatability at 5 - 10 mL/min: > 0.5 %
    Flow rate repeatability at 10 - 250 mL/min: < 0.5 %
    Gradient step tolerance at 80 mL/min, 80 bar (1160 psi):
    < 3.5 %
    Interfaces:
    9 x RS-232 (1 female, 8 male)
    1 x RJ45
    1 x solvent level sensor port
    1 x analog port
    2 x control signal ports
