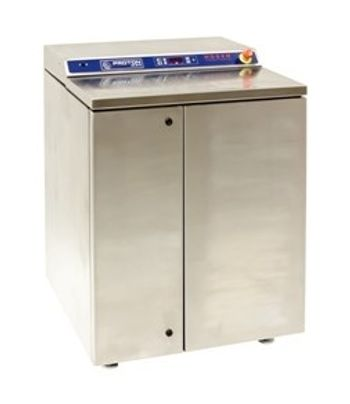

Proton OnSite - G4800
Hydrogen G4800 laboratory-sized generator is designed for multiple GC FID and carrier gas applications. The G4800 is...
Active Questions & AnswersAsk a Question
There are no current Discussions
Hydrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of G4800
- Auto fill water level control
- Compact size and quiet operation
- Water monitoring system including purity monitor
- Automatic production control
- System senses demand and adjusts production rate
- Purge airflow monitoring system assures safe operation
- Automatic leak detection system
General Specifications
| Depth | 38 in |
| Height | 42 in |
| Maximum Pressure | 200 psi g |
| Width | 31 in |
| Power Requirements | 205 to 240 VAC, single phase, 50 or 60 Hz |
| Peak Power | 4 kVA |
| Weight | 475 lbs |
| Gas Generated | Hydrogen |
Additional Specifications
Pure Hydrogen Output Rate:
4800 cc / min
Electrolyte System:
Proton Exchange Membrane (PEM) solid electrolyte, maintenance and caustic-free
Hydrogen Purification Technology:
PSA, Molecular sieve
Hydrogen Inventory At Full Capacity:
1 MegOhm-cm)
Cordset:
Hard wired connection
Operating Environment:
Indoor, non-classified, 40°F to 95°F (5°C to 35°C), < 90% RH, ventilated
Duty Cycle:
100% (24/7/365)
Dimensions (W X D X H) Est. Shipping:
38 x 45 x 52 (97 x 114 x 132 cm)
Weight Est. Shipping:
625 lbs (284 kg)
Product Certifications:
cTUVus (UL and CSA equivalent), CE (PED, ATEX, LVD, PED, EMC) NYFD Approval
Controls And Automation Led:
high visibility display; Adjustable pressure output; Remote alarm terminal/output;
Switchable psi/kPa pressure reading; Ethernet and RS232
Diagnostics And Warnings:
Water quality, water level, comprehensive self-diagnostics, leak sensing
Maintenance:
Annual filter changes
Options:
Deionized water supply system, Auto-crossover manifold for backup gas supply, Pressure
reducing regulator
