PHCBi - CytoGrow COMPACT Incubators
No Documents
Panasonic CytoGROW Compact Series CO2 incubators offer precise CO2 and O2 control in a compact, space saving design...
Active Questions & AnswersAsk a Question
There are no current Discussions
CO2 Incubator Service ProvidersView All (28)
Documents & Manuals
There are no Documents or Manuals available.
Features of CytoGrow COMPACT Incubators
Main Features:
- Compact and Stackable
- Active Background Control with InCu-saFe
- SafeCell UV Protection (Optional)
- Direct Heat and Air Jacket System
- Integrated Microprocessor Control
Preventive Contamination Control
The unique InCu-saFe® copper-enriched stainless steel chamber with coved corners provides continuous background contamination control, inhibiting bacteria and other contaminant growth on the surface.
Ergonomic Design

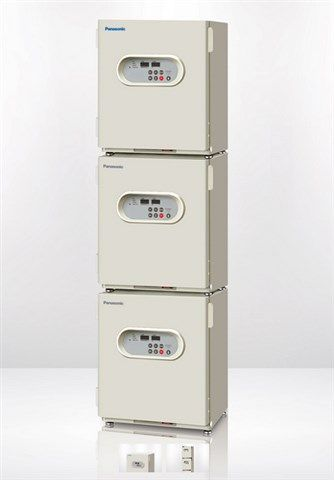

The Panasonic CytoGROW Compact series incubators provide optimal configurability with its low-profile and ability to be triple-stacked. With user-friendly access built in to the door-mounted control panel and a field reversible door that can be set up for right or left-swing door openings, use your laboratory space more efficiently than ever.
Improved Temperature Stability with D.H.A. System
P.I.D. controlled 3-way heaters plus Panasonic’s proprietary D.H.A. (Direct Heat and Air jacket) provides a high-precision temperature environment, and minimizes the risk of condensation at all times.
Water Level Sensor
The humidity pan has an optical water level sensor to warn of low water level.
Automatic Gas Cylinder Switchover System
This system automatically switches from the primary to secondary gas cylinder when the O2 gas level does not change while an injection valve is open.
Contamination Control
InCu-saFe® copper-enriched stainless steel chamber construction helps inhibit the growth of mycoplasma, bacteria, molds, yeasts and fungi without costly HEPA air scrubbers, which can accumulate contaminants in the chamber. Disruptive, high temperature decontamination schemes that can actually encourage growth of heat resistant thermophilic and hyperthermophilic microorganisms in vitro are also avoided.
High Performance In Vitro Modeling
Stable temperature, humidity and CO2 density are achieved through a combination of performance systems supervised by a centralized microprocessor controller complete with alarm, programming, calibration and diagnostic protocols exportable to a remote database.
General Specifications
| Depth | 22.3 in |
| Height | 56.8 in |
| Width | 18.9 in |
| Chamber Volume | 1.7 cu. ft. |
| Weight | 108 lbs |
| Maximum Shelf Load | 8.8 lbs |
| Shelf Dimensions | 6 Max - 12.2 “x 12.2 “x 0.5” / 310 x 310 x 12 mm |
Additional Specifications
Decontamination:
inCu-saFe®/ Optional SafeCell UV
Interior Dimensions:
13.8 X 14.9 X 14.8 (350 X 378 X 375 mm)
Temperature Control Range:
+5ºC above ambient to 50°C (Ambient temperature 50C to 350C
Temperature Control Uniformity Deviation:
±0.25°C (in 25°C ambient, setting 37°C, 5% CO2, no load
Co2 Control:
Thermal Conductivity
Co2 Control Range And Deviation:
0 to 20% ±0.15% (in 25°C ambient, setting 37°C, 5% CO2, no load)
O2 Control And Range:
Zirconia sensor with P.I.D.Recovery
Interior Humidity:
95% RH at 37°C through evaporation via DHA heating system, optional reflective/deflective optical low-water sensor
Access Port:
Single, 1.18 /30 mm with silicone (non-VOC) stoppers (upper-left rear)
