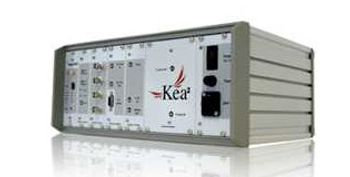

Magritek - Kea

Manufactured by  Magritek
Follow this Equipment

Powerful, but still compact, Magritek’s new Kea2 significantly improves performance and extends the frequency range of our signature NMR spectrometer.

Powerful, but still compact and portable, Magritek’s new generation of Kea NMR spectrometer, the Kea2, significantly improves performance and extends the frequency range of our signature NMR spectrometer line.

With a footprint of 36 cm x 23 cm (12″ x 8″) by only 15 cm (5″) high, the Kea2 conserves lab space. Weighing less than 5 kg (11 lbs), it is easily moved and operated in almost any environment.
Active Questions & AnswersAsk a Question

There are no current Discussions

NMR Spectrophotometers Service ProvidersView All (3)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of Kea
  • A modular design, with several optional modules such as an internal amplifier and a four channel gradient driver module
  • Optional second channel
  • High stability oven controlled oscillator
  • Available as a standalone or OEM product
  • Experiment design and data processing can be combined into a single button click with the included Prospa programmable macro language and programming environment
  • Small and lightweight: perfect for portable applications, or where laboratory space is at a premium
  • Pulse Programming
    • General Specifications

    There are no General Specifications available.

    Additional Specifications

    [*] Size: 360 x 230 x 150 mm
    [*] Weight: 5 kg (11 lb)
    [*] 4 Channels
    [*] Transmitter output power: 100 W to 50 MHz, 30 W to 100 MHz
    [*] Interface: Full speed USB 2.0
    [*] Pulse program timing resolution: 100 ns
    [*] Waveform memory: 256 k (128 k waveform, 128 k data) 24-bit samples.
    [*] User interface: Prospa software
    [*] I/O: 8 TTL outputs, 1 TTL input
