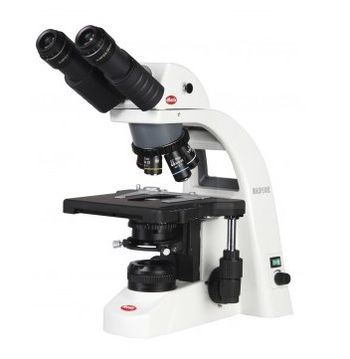

Motic - BA310E Binocular

Manufactured by  Motic
Follow this Equipment

Motic is committed to the concept of continuously improving its models, especially after carefully looking at the...

Motic is committed to the concept of continuously improving its models, especially after carefully looking at the increasing demands of its customers and their applications. The successfully established BA310 model was no exception, and for this reason Motic has launched the new Elite model BA310E. Once again Motic has challenged itself to stride ahead of the competition.

The BA310Elite model introduces superior improvements both in optical and mechanical performance. The model now incorporates a lead-free manufacturing process in accordance with current RoHS standards, and follows the optical features and performance derived from the flagship model BA410. The ELITE model’s addition of a new rackless stage concept without prominent gear rack allows an even more convenient use of the x/y movement. For full freedom of Illumination options, the new model has a complete and easy interchangeability of its 6V/30W Halogen bulb with LED modules.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of BA310E Binocular
  • 30° inclined Binocular head with 360º Swiveling eyepiece tubes for comfortable viewing while seated(light split 100:0/20:80)
  • Interpupillary distance adjustment between 48-75mm
  • Widefield eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces
  • Reversed quintuple nosepiece with click stops for precise magnification changes
  • CCIS® EC Plan 4X, 10X, 20X (optional), 40X, 60X (optional) and 100X-Oil
  • Coaxial coarse and fine focusing system with 2 micron minimum increment with tension adjustment
  • Vertical travel range 20mm
  • Large 180 X 170mm rackless stage with low-position coaxial controls. Travel range 80 X 55mm.
  • Focusable and centrable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slider slot.
  • Collector lens assembly with screw-on filter holder
  • Built-in transmitted 6V/30W Halogen Koehler illumination or 3W LED Koehler illumination (6000K & 4500K)
  • General Specifications
    Microscope TypeUpright
