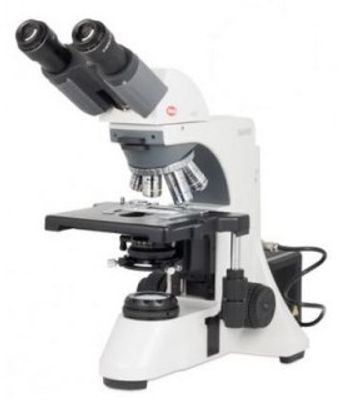

Motic - BA410 ELITE Series
Manufactured by Motic
No Documents
The Elite version of Motic’s established BA410 flagship model displays the highest level of optical...
The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.
A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.
The rackless stage concept, well known from BA210/BA310 Elite models, is now adopted in this flagship model. A ceramic stage insert for highest abrasion resistance guarantees a perfectly flat placing of the glass slide for a lifetime.
A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.
The rackless stage concept, well known from BA210/BA310 Elite models, is now adopted in this flagship model. A ceramic stage insert for highest abrasion resistance guarantees a perfectly flat placing of the glass slide for a lifetime.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of BA410 ELITE Series
BA410 Elite Binocular 50W
Binocular head Siedentopf type 30°, inclined, 360° rotating
Widefield high eyepoint eyepieces N-WF 10X/22mm with diopter adjustment and rubber eyecups
Reversed coded sextuple nosepiece
CCIS Plan achromatic objectives EC-H PL 4X, 10X, 40X S, 100X S-Oil
Coaxial coarse and fine focusing adjustment
Built in low position rackless stage with ceramic insert and right hand control
Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
Koehler illumination quartz halogen 12V/50W with external lamp house and intensity control
BA410 Elite Trinocular 50W
Trinocular head Siedentopf type 30°, inclined, 360° rotating (Light split 100:0/20:80)
Widefield high eyepoint eyepieces N-WF 10X/22mm with diopter adjustment and rubber eyecups
Reversed coded sextuple nosepiece
CCIS Plan achromatic objectives EC-H PL 4X, 10X, 40X S, 100X S-Oil
Coaxial coarse and fine focusing adjustment
Built in low position rackless stage with ceramic insert and right hand control
Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
Koehler illumination quartz halogen 12V/50W with external lamp house and intensity control
General Specifications
| Microscope Type | Upright |
