Motic - AE2000MET Series
Manufactured by Motic
No Documents

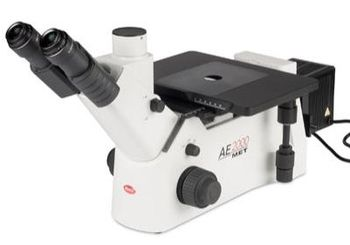

Inverted Metallurgical Microscope
Motic is pleased to present the AE2000MET, an Inverted Metallurgical microscope dedicated for the inspection of bulky materials in automotive, machinery and steel industry.
Large metal pieces or die casting parts, not to be treated with an upright microscope, can easily be examined for failure analysis, material research or quality control.
Motic’s CCIS® Optical System, an advanced Infinity concept, provides new BF/DF objectives with Long Working distance for flat, opaque samples.High quality glasses and anti-reflex coating ensures superb image quality.
Large metal pieces or die casting parts, not to be treated with an upright microscope, can easily be examined for failure analysis, material research or quality control.
Motic’s CCIS® Optical System, an advanced Infinity concept, provides new BF/DF objectives with Long Working distance for flat, opaque samples.High quality glasses and anti-reflex coating ensures superb image quality.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of AE2000MET Series
AE2000MET Trino 100W LM
Trinocular head Siedentopf type 45° inclined, 360º swiveling (Light split 100:0/20:80)
Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups
Side facing quintuple nosepiece
CCIS LM Plan achromatic objectives LM PL 5X, 10X, 20X, 50X
Adapter for bright field objectives (to be used with LM PL objectives)
Coaxial coarse and fine focusing adjustment
AE2000MET Trino 100W LM BD
Trinocular head Siedentopf type 45° inclined, 360º swiveling (Light split 100:0/20:80)
Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups
Side facing quintuple nosepiece
CCIS LM BD Plan achromatic objectives LM BD PL 5X, 10X, 20X, 50X
Coaxial coarse and fine focusing adjustment
Hard coated mechanical stage with round and oval stage inserts
General Specifications
| Microscope Type | Upright |
