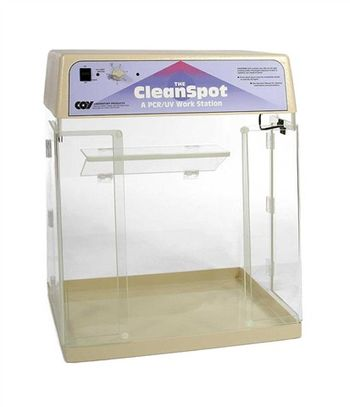

Coy Laboratory Products - CleanSpot
Manufactured by Coy Laboratory Products
The CleanSpot is designed to fulfill a very important need today... control of PCR contamination.
Just 25 - 30 minutes of UV irradiation in the Coy Clean Spot can prevent unwanted PCR contamination. The Clean Spot is the easiest and most economical method for DNA (RNA) purification.
The combination of a special light reflector and two powerful overhead UV bulbs generate Pyrimidine Dimers (T,C) and other photo defects in contaminating target sequences, thus eliminating falsely primed products that result in countless lost time and expense.
The CleanSpot is designed to prevent unwanted contaminant DNA in amplification mixtures, thereby saving many lost hours and expensive samples.
The UV resistant acrylic enclosure provides a contained, dead air space in which to set up your reactions and permit safe 254nm UV irradiation of solutions and supplies. This powerful UV wavelength renders DNA contaminants biologically inactive in 30 minutes or less.
The thick front panel is an effective beta irradiation shield as well as acting as a breath guard. An overhead fluorescent light illuminates the work area.
Click here for detailed description of the CleanSpot
The combination of a special light reflector and two powerful overhead UV bulbs generate Pyrimidine Dimers (T,C) and other photo defects in contaminating target sequences, thus eliminating falsely primed products that result in countless lost time and expense.
The CleanSpot is designed to prevent unwanted contaminant DNA in amplification mixtures, thereby saving many lost hours and expensive samples.
The UV resistant acrylic enclosure provides a contained, dead air space in which to set up your reactions and permit safe 254nm UV irradiation of solutions and supplies. This powerful UV wavelength renders DNA contaminants biologically inactive in 30 minutes or less.
The thick front panel is an effective beta irradiation shield as well as acting as a breath guard. An overhead fluorescent light illuminates the work area.
Click here for detailed description of the CleanSpot
Active Questions & AnswersAsk a Question
There are no current Discussions
PCR / Thermal Cyclers Service ProvidersView All (14)
Documents & Manuals
There are no Documents or Manuals available.
Features of CleanSpot
Multiple Item Irradiation
Large enclosed work area permits continuous irradiation of many items simultaneously.
More Effective Irradiation of Reaction Mixtures, Reagents and Supplies
Unique light reflector allows all UV light to be directed to the work area, providing more effective irradiation of reaction mixtures, reagents, pipette tips, and pipettors.
Reduced Operator Exposure to UV
Safety device switches off the lamps preventing user exposure inside chamber. Acrylic absorbs UV light for added safety.
Eliminates Falsely Primed Products in 30 minutes or less
The shelf can be used as an exposure area to reduce decontamination time.
White Light Illumination
Overhead white light illuminates the work area for non-UV light applications.
(32)P Workstation, Ideal for Cycle Sequencing Preparation
Thick 3/8 inch acrylic front panel is an effective beta shield, providing protection from beta radiation emitted from (32)P.
Isolating Environment
The enclosed benchtop work area provides a convenient, "clean," still air environment in which to set up reactions.
Easy to Install and Clean
The chamber breaks down into 4 component parts without the use of tools.
Advantages Over Other Methods
In addition to enjoying cost advantages over laminar hoods, the CleanSpot can have performance benefits due to the enclosed work area and UV lights. The amplified DNA is not altered, as with chemical decontamination methods. An important facet in preventing contamination, the isolated, "clean" set up area is missing when trans-illuminators or crosslinkers are used as radiation sources. Also, these light sources may not emit light at a high enough intensity or at the proper wavelength to efficiently inactivate the contaminant DNA.
General Specifications
There are no General Specifications available.
Additional Specifications
Click here for [url=http://www.coylab.com/pcrworkstation-sizes.htm]specs and sizes of the CleanSpot [/url]
