New Era Pump Systems - NE-500
Manufactured by New Era Pump Systems
No Documents

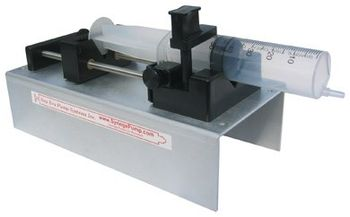

NE-500 OEM Application Syringe Pump
Source:
*** Not for clinical use on humans ***
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Pumps Service ProvidersView All (3)
Documents & Manuals
There are no Documents or Manuals available.
Features of NE-500
- Built for Automation
- Operates from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Motor stall detection available in NE-501 model ($550)
- Dispensing accuracy of ± 1%
- Unlimited lifetime technical support
- Two year warranty
General Specifications
There are no General Specifications available.
Additional Specifications
High pressure notes:
The NE-500 produces about 15 lbs of linear force at top speed and about 35 lbs at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughtly produce about 30 psi
The high pressure version, NE-510, will approximately double the pumping force at the same speeds.
