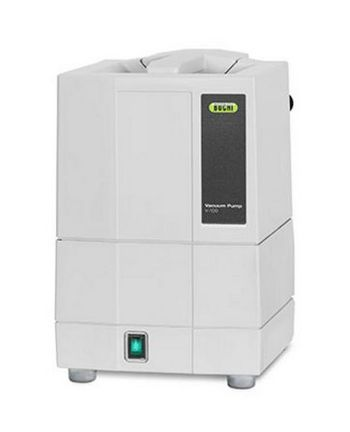

BUCHI Corporation - Vacuum Pump V-100
Manufactured by BUCHI Corporation
The V-100 is an economical and chemical-resistant vacuum pump with a space saving design.
The V-100 is an economical and chemical-resistant vacuum pump with a space saving design. It covers essential needs in vacuum generation.
Active Questions & AnswersAsk a Question
There are no current Discussions
Vacuum Pumps Service ProvidersView All (13)
Documents & ManualsView All Documents
Features of Vacuum Pump V-100
Economical
- Effective vacuum source for limited budgets
- Small footprint saves valuable laboratory space
- Useable for multiple applications: Evaporation, drying and concentration, suction straining and filtration
- Light weight and compact design with integrated carrying handle
- High up time due to low maintenance
- Accurate vacuum regulation thanks to optional interface
- Highly chemical resistant thanks to use of quality materials
- Maximum longevity due to: - Robust and stable design - Integrated ECO2 mode
General Specifications
| Depth | 210 mm |
| Height | 275 mm |
| Width | 180 mm |
| Power Requirements | 100 – 240 V, 50/60 Hz |
| Peak Power | 70 W |
| Noise Level | 52 dB |
| Vacuum Pump Type | Diaphragm Pump |
| Weight | 5.6 kg |
| Motor | DC, brushless |
| Ultimate Vacuum (partial) | 10 mbar |
