HEMCO Corporation - UniFlow Conventional / VAV
Manufactured by HEMCO Corporation
UniFlow Special Purpose Fume Hoods

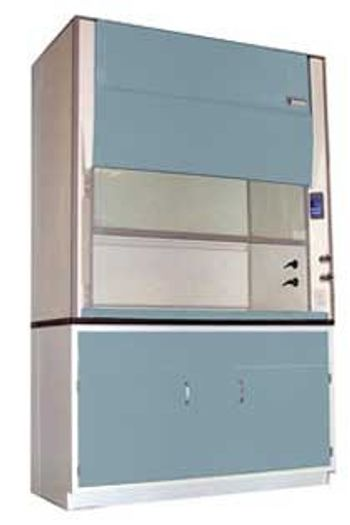

UniFlow Conventional / VAV Fume Hoods 4’, 5’, 6’ and 8’ widths. The conventional fume hood maintains constant air volume through sash opening. Equipped with optional Variable Air Volume Control (VAV) system that constantly monitors face velocity and adjusts to a pre-set level, ensuring sufficient air flow to meet specific requirements. Equipped with vapor proof-light and switch. All electrical components and services are UL and CSA listed. Requires a remotely located exhaust blower. Shown with optional service fixtures, plumbing & electrical, airflow monitor, worksurface, base cabinet
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
HEMCO Corporation - 21401
[+] View Model Specifications| Airflow (CFM) | 773 CFM |
| Depth | 24.25 in |
| Height | 59 in |
| Internal Depth | 23.75 in |
| Internal Height | 26 in |
| Width | 48 in |
| Internal Width | 37.75 in |
| Face Velocity (FPM) | 100 FPM |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications | Airflow:
773 CFM with sash fully open for 100 FPM 385 CFM with sash 50% open for 100 FPM |
HEMCO Corporation - 21501
[+] View Model Specifications| Airflow (CFM) | 938 CFM |
| Depth | 24.25 in |
| Height | 59 in |
| Internal Depth | 23.75 in |
| Internal Height | 26 in |
| Width | 60 in |
| Internal Width | 49.68 in |
| Face Velocity (FPM) | 100 FPM |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications | Airflow:
938 CFM with sash fully open for 100 FPM 474 CFM with sash 50% open for 100 FPM |
HEMCO Corporation - 21601
[+] View Model Specifications| Airflow (CFM) | 1162 CFM |
| Depth | 24.25 in |
| Height | 59 in |
| Internal Depth | 23.75 in |
| Internal Height | 26 in |
| Width | 72 in |
| Internal Width | 60.75 in |
| Face Velocity (FPM) | 100 FPM |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications | Airflow:
1162 CFM with sash fully open for 100 FPM 592 CFM with sash 50% open for 100 FPM |
HEMCO Corporation - 21801
[+] View Model Specifications| Airflow (CFM) | 1613 CFM |
| Depth | 24.25 in |
| Height | 59 in |
| Internal Depth | 23.75 in |
| Internal Height | 26 in |
| Width | 96 in |
| Internal Width | 84.75 in |
| Face Velocity (FPM) | 100 FPM |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications | Airflow:
1613 CFM with sash fully open for 100 FPM 800 CFM with sash 50% open for 100 FPM |
