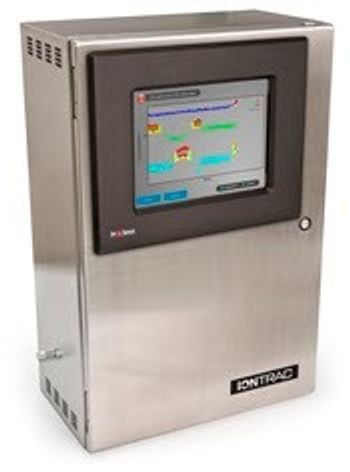

1st Detect - iONTRAC

Manufactured by  1st Detect
Follow this Equipment

the iONTRAC process monitor combines the selectivity, speed, and sensitivity of an ion trap mass spectrometer with...

the iONTRAC process monitor combines the selectivity, speed, and sensitivity of an ion trap mass spectrometer with ruggedized packaging, user-friendly software, and ease of operation. The versatile instrument can be customized to a wide variety of detection, analysis, and PAC/PAT applications directly on the plant floor. Streams and ambient environments can be monitored in real-time and time-trend analysis or alarm conditions reported over industry standard Ethernet RJ-45.
Active Questions & AnswersAsk a Question

There are no current Discussions

Ion Trap Systems Service ProvidersView All (42)

Request Support
EquipNetView Vendor
View All
Documents & Manuals

There are no Documents or Manuals available.

Features of iONTRAC
SELECTIVE, SIMPLE AND ACCURATE PROCESS MONITORING
  • Monitor gas streams in real-time
  • No carrier gases required
  • Operator controlled or autonomous unattended operation
  • Continuous monitoring
  • Out-of-spec product alarms
  • 4 – 20mA outputs
  • ATEX class I div I / class I div II (optional)
  • GC inlet options available
    • General Specifications
    Depth 8 in
    Height24 in
    Width 16 in
    Weight45 lbs
    Mass Spectrometer TypeIon-Trap Mass Analyzer
    Additional Specifications

    Measurement Method:
    Ion trap mass spectrometer
    Mass Range:
    35 – 500 amu (custom mass ranges available)
    Ionization Source:
    Internal EI (optional photoionization)
    Sampling Method:
    Membrane inlet (optional preconcentrator or capillary)
    Dynamic Range:
    2 orders of magnitude
    Scan Speed (continuous mode):
    1 second (user programmable)
    Gases Monitored:
    User programmable (up to 8 ions)
    Accuracy (measured at 91 amu over 1 month):
    < 5 % RSD
    Precision (measured at 91 amu over 5 minutes):
    < 1 % RSD
    Sample Inlet:
    1/2″ SwageLok (customizable for specific applications)
    Sample Flow:
    < 600 ml /min (continuous mode)
    Communication Protocol:
    IEEE 802.3 10/100 Ethernet
