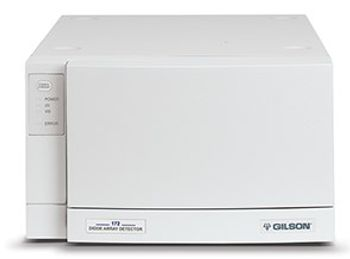

Features of 171/172 Diode Array Detectors

General Specifications

There are no General Specifications available.

Additional Specifications

Wavelength:
172 DAD: 190 - 610 nm
171 DAD: 190 - 720 nm
Wavelength Accuracy:
± 1 nm
Repeatability <0.1 nm
S/N Ratio:
172 DAD: <2*10E-05 AU
171 DAD: <3*10E-05 AU
Detection Type (pixels):
172 DAD: 512-element photodiode array
171 DAD: 256-element photodiode array
Drift:
Baseline Drift
<0.0005 AU/hour (254 nm, according to ASTM E685-93)
Wavelength Temperature Drift
172 DAD: <0.005 nm/°C
171 DAD: <0.006 nm/°C
Short Term Noise (signal/noise ratio):
172 DAD: <0.00002 AU (254 nm, according to ASTM E685-93)
171 DAD: <0.00003 AU (254 nm, according to ASTM E685-93)
Light Source:
Deuterium and tungsten lamps (2000 hours expected lamp life)
Remote Flow Cell:
Optional
Resolution:
172 DAD: 0.8 nm/pixel
171 DAD: 2.2 nm/pixel
Lamp Warm-up Time:
15 – 30 minutes
Front Panel:
POWER/STANDBY soft key and LED indicator lights for POWER, UV, VIS and ERROR
Contact Control:
Two open collector outputs and two contact inputs
Software Control:
Computer control via Ethernet communication and TRILUTION® LC Software
Data Acquisition:
Between 5 and 10 points/sec with TRILUTION® LC Software
Environmental Conditions:
For indoor use only
Altitude: 2000 m
Temperature: 5° – 40°C
Air pressure: 75 – 105 kPa
Pollution degree: 1 or 2, in accordance with IEC 66
Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
Safety Approvals/EMC Compliance:
Certified to UL, CSA, CE, and C-Tick Safety and EMC standards
Fuse:
Two 5 x 20 mm “T” type 1.6A
Power Requirement:
Frequency: 50 - 60 Hz
Voltage: 100 – 240V
100W
Dimensions (w x d x h):
26.5 x 43.5 x 15.6 cm (10.4 x 17.1 x 6.2 in)
Weight:
172 DAD: 7.3 kg (16 lb)
171 DAD: 6.8 kg (15 lb)
