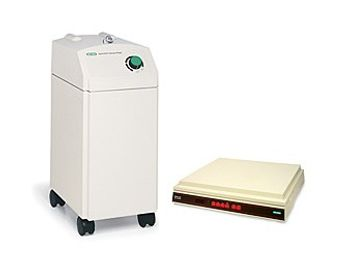

Bio-Rad Laboratories, Inc. - Model 583 and HydroTech™ Pump Gel Drying Complete Systems
No Documents
The Model 583 Gel Dryer accommodates sequencing gels or multiple standard size gels (16 mini gels, 9 Criterion™...
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Vacuum
Starting:
>29" Hg
After 10 hr:
?28" Hg at 22°C
At 35°C (room temperature):
?26" Hg
Flow rate:
60 Hz, ?28 L/min; 50 Hz, ?21 L/min
Voltage:
90–140 VAC, 50–60; 200–240 VAC, 50–60 Hz
Indicators:
Vacuum (optional with gauge); water level
Function modes:
Continous or timed operation
Timer control:
0–3 hr, fully adjustable
Fluid capacity:
1 L when primed, 4 L total
Noise:
12 dB rise over background
Operating Conditions
Temperature:
4–35°C
Humidity:
10–90% relative humidity
Regulatory certification:
IEC 1010–1
Emissions certification (220/240 V only):
CE emissions EN 55022; CE immunity EN 50082–2
Dimensions (W x D x H):
25 x 40 x 51.5 cm (9.8 x 15.8 x 20.3")
Weight (empty):
14 kg (31 lb)
