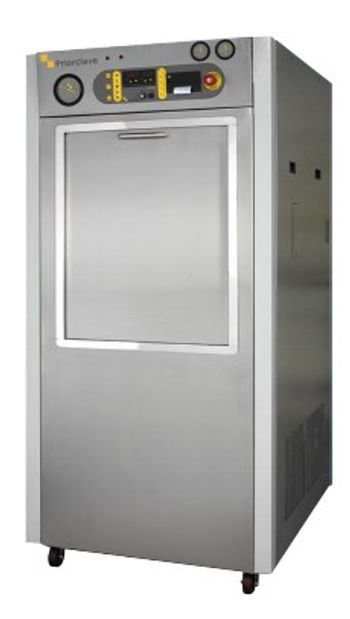

Priorclave - 230L Power Door
The POWERDOOR range of autoclaves satisfies a demand for autoclaves with a large rectangular sterilizing chamber su...
The POWERDOOR range of autoclaves satisfies a demand for autoclaves with a large rectangular sterilizing chamber suited to handling bulky items but where the laboratory does not have sufficient space to allow for the conventional hinged door opening. With the Priorclave PowerDoor range the chamber door lowers within the body of the actual machine, thereby enabling laboratories to acquire an autoclave suited for high throughput sterilizing procedures or able to handle extra bulky items despite restricted room size.
The Mid-Capacity range is produced in two chamber sizes of 230 and 350 liters and can be supplied as standard format or with a fascia panel. Push-Buttons control the hands free opening and closing of the vertically sliding pressure door.
An advantage of the PowerDoor autoclaves is a fixed gasket onto which the door closes. When raised in line with the chamber opening, the door automatically moves forward directly onto the seal to create an air-tight lock. This action prevents undue wear on the fixed seal, extending service intervals and improving operational performance of these autoclaves.
Active Questions & AnswersAsk a Question
There are no current Discussions
Autoclaves Service ProvidersView All (24)
Documents & Manuals
There are no Documents or Manuals available.
Features of 230L Power Door
- Special STAYPUT locking geometry keeps the pressure door fully locked even in event of drive failure. The pushbutton controls manage the functionality of thermal and pressure locks to prevent opening at load temperature above 80°C and pressures above 0.2 bar.
- Tactrol 2® microprocessor control with simple and fully variable setting of process time, temperature with graphic indication of cycle status.
- Automatic timed free-steaming.
- Water cooling jackets.
- Pre-cycle vacuum in which multiple Vacuum stages are programmed with interspersed heating to achieve steam penetration. Incorporates Vacuum Assisted Cooling
- Pulsed freesteaming to maximize efficiency of Pre-cycle vacuum phase
- Post Cycle Drying
- Epoxy coated panels and frame members are treated with an anti-bacterial agent which is effective against all bacteria and fungi including MRSA.
- Pressure vessel carries a 10 year warranty and is insurance approved.
- Service and support direct from manufacturer (or appointed distributor).
General Specifications
There are no General Specifications available.
Series Modals
Priorclave - 230L Power Door Steam Heated
[+] View Model Specifications| Orientation | Floor Standing |
| Chamber Volume | 230 L |
| Weight | 960 kg |
| Additional Model Specifications |
Priorclave - 350L Power Door
[+] View Model Specifications| Orientation | Floor Standing |
| Chamber Volume | 350 L |
| Weight | 1060 kg |
| Additional Model Specifications |
Priorclave - 350L Power Door Steam Heated
[+] View Model Specifications| Orientation | Floor Standing |
| Chamber Volume | 350 L |
| Weight | 1060 kg |
| Additional Model Specifications |
