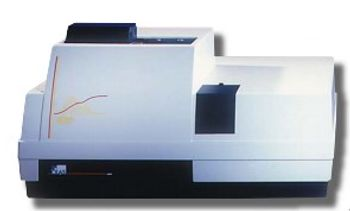

The CILAS 920 is the ideal tool for the construction industries dealing with cements or other dedicated products.
With an extremely compact cast iron optical bench, the CILAS 920 is able to run powder or emulsion size analysis, from 0.3 up to 400 Μm, within a few seconds. The 830 nm laser diode, with a very long lifetime, lights the sample. A photodiode matrix detector acquires the diffraction pattern. The results are presented in 30 classes.
As for all the range of CILAS particle size analyzers, the CILAS 920 benefits from this
patented, original and unique design which switches, by a simple "click of a mouse", between liquid and dry mode in a matter of seconds. There is no need for an additional module, nor is there any need for realignment or recalibration. All types of samples can be analyzed.
The CILAS 920 is the ideal tool for the construction industries dealing with cements or other dedicated products. It is also very useful in the chemical industries and, taken as a whole, in production control.
Active Questions & AnswersAsk a Question
Particle Size Analyzers Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features of 920
- Video Camera: for visualizing shape.
- Small volume unit: 50 ml for aggressive solvents and high-cost samples.
- Alcohol recirculator: to decrease the cost of alcohol, when analyzing hydrophilic particles.
- Auto sampler: 28 cups for unattended analysis.
- Remote control module to increase productivity.
General Specifications
| Depth | 33 in |
| Height | 19 in |
| Temperature Range | 10 to 40 °C |
| Width | 22 in |
| Size | 0.3 to 400 µm |
| Weight | 110 lbs |
