HEMCO Corporation - Canopy Hood Series
Manufactured by HEMCO Corporation
Collect and exhaust corrosive vapors, heat, steam and odors when mounted over areas with water baths, hot plates or portable equipment.

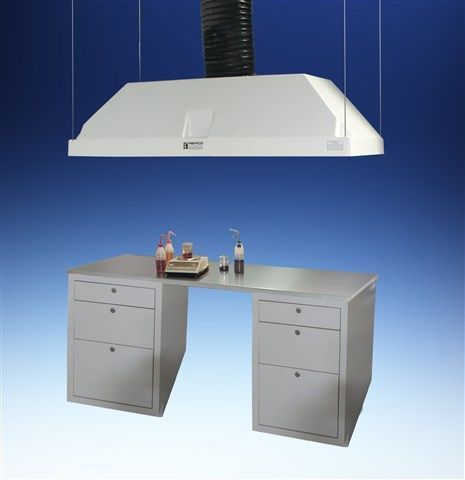

HEMCO Canopy Hoods are designed to collect and exhaust corrosive vapors, heat, steam and odors when mounted over areas with water baths, hot plates or portable equipment. Canopies are available in wall, island, and corner canopy models. Canopy hoods are available in stainless steel or fiberglass. Manufactured of molded one-piece composite resin, fiberglass canopy hoods are lightweight and can be wall-mounted or suspended from the ceiling over island locations. The canopy fume hood’s glass smooth surfaces provide superior chemical, corrosion and heat resistance. Optional side panels prevent cross drafts and further improve airflow while providing a way to contain chemical spills.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
HEMCO Corporation - 13000
[+] View Model Specifications| Depth | 45 in |
| Width | 45 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Corner
Outlet diameter: 6" Corner Canopy Wall Mounting Kit: six 3/8" X 4" bolts, toggle nuts, to secure canopy hood [u]Also available:[/u] Corner Composite Resin Work Surface: dished to contain spillage Corner Table: welded steel construction |
HEMCO Corporation - 13030
[+] View Model Specifications| Depth | 36 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Wall
Outlet diameter: 6" Wall Canopy Hood Mounting Kit: Four 3/8 " X 4" bolts with toggle nuts to secure canopy to wall |
HEMCO Corporation - 13040
[+] View Model Specifications| Depth | 48 in |
| Fume Hood Type | Benchtop Ductless |
| Additional Model Specifications | Type: Wall
Outlet diameter: 8" Wall Canopy Hood Mounting Kit: Four 3/8 " X 4" bolts with toggle nuts to secure canopy to wall |
HEMCO Corporation - 13060
[+] View Model Specifications| Depth | 72 in |
| Fume Hood Type | Benchtop Ductless |
| Additional Model Specifications | Type: Wall
Outlet diameter: 10" Wall Canopy Hood Mounting Kit: Four 3/8 " X 4" bolts with toggle nuts to secure canopy to wall |
HEMCO Corporation - 13080
[+] View Model Specifications| Depth | 96 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Wall
Outlet diameter: 12" Wall Canopy Hood Mounting Kit: Four 3/8 " X 4" bolts with toggle nuts to secure canopy to wall |
HEMCO Corporation - 23030
[+] View Model Specifications| Depth | 36 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Island
Outlet diameter: 6" Wall Canopy Hood Mounting Kit: Suspended Canopy Hood Mounting Kit with four 10" vinyl coated aircraft suspension cables, eyebolts, hardware |
HEMCO Corporation - 23040
[+] View Model Specifications| Depth | 48 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Island
Outlet diameter: 8" Wall Canopy Hood Mounting Kit: Suspended Canopy Hood Mounting Kit with four 10" vinyl coated aircraft suspension cables, eyebolts, hardware |
HEMCO Corporation - 23060
[+] View Model Specifications| Depth | 72 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Island
Outlet diameter: 10" Wall Canopy Hood Mounting Kit: Suspended Canopy Hood Mounting Kit with four 10" vinyl coated aircraft suspension cables, eyebolts, hardware |
HEMCO Corporation - 23080
[+] View Model Specifications| Depth | 96 in |
| Fume Hood Type | Canopy Ducted |
| Additional Model Specifications | Type: Island
Outlet diameter: 12" Wall Canopy Hood Mounting Kit: Suspended Canopy Hood Mounting Kit with four 10" vinyl coated aircraft suspension cables, eyebolts, hardware |
