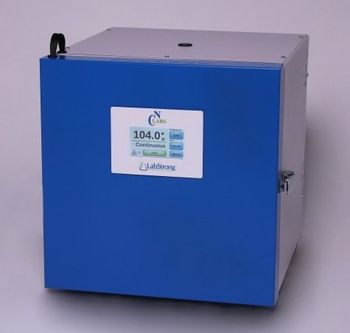

LabStrong - Gravity Oven
Manufactured by LabStrong
No Documents
Gentle drying and heating, with low turbulence, protects delicate samples where a fan airflow would disturb them.
LabStrong and North Central Laboratories have teamed up to offer a gravity oven capable of meeting Standard Method 2540B (Total Solids Dried at 103-105°C) and 2540D (Total Suspended Solids Dried at 103-105°C) requirements. The oven has been certified to have a uniformity of +/- 1°C at 104°C by an independent testing facility. The oven, sold exclusively through NCL, offers industry leading temperature uniformity performance at an exceptional price point.
Gentle drying and heating, with low turbulence, protects delicate samples where a fan airflow would disturb them. Advanced touch screen graphical control provides intuitive operation with precise temperature control. Ideal for labs where space is at a premium, the lightweight, compact oven conserves benchtop space and fits in most fume hoods. The oven is intended for use in biological, chemical, medical, pharmaceutical, and physical laboratories.
Gentle drying and heating, with low turbulence, protects delicate samples where a fan airflow would disturb them. Advanced touch screen graphical control provides intuitive operation with precise temperature control. Ideal for labs where space is at a premium, the lightweight, compact oven conserves benchtop space and fits in most fume hoods. The oven is intended for use in biological, chemical, medical, pharmaceutical, and physical laboratories.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & Manuals
There are no Documents or Manuals available.
Features of Gravity Oven
[u]Product Features:[/u]
Superior Performance Capabilities
Easy to read 4.3’’ graphic display with intuitive touch screen interface
Programmable timed (up to 999 hours and 99 minutes) or continuous operation
Small footprint for operation on standard benchtops and in most fume hoods
Easy access to interior chamber and shelf adjustment
Multi-level shelving system allows for optimal space utilization
Safe
- ]Digital PID controller for quick, stable, and accurate temperature setting
- High quality construction and insulation provide industry leading temperature uniformity
- Chamber temperature uniformity is +/-1° at 104°C
- Quick ramp-up and recovery times following sample insertion
- Calibration can be performed at user selected temperature
- Wire shelves allow for efficient airflow throughout chamber
- Timed mode turns unit off for added energy savings
- Silicone door gasket and spring tension door latch prevent heat loss
- Ceramic fiber insulation minimizes heat loss
- Thick wall and door thermal insulation maintains safe, low outer case temperatures
- Over temperature protection alarm system with automatic shutoff and visual alarms
- Tough Construction
- Durable outer case constructed of scratch-resistant powder coated steel
- Corrosion resistant aluminum inner chamber
- Insulation increases energy efficiency
General Specifications
| Depth | 460.4 mm |
| Temperature Uniformity | 1 °C |
| Height | 444.5 mm |
| Internal Depth | 320.7 mm |
| Temperature Range | 50 to 150 °C |
| Internal Height | 285.8 mm |
| Width | 443 mm |
| Internal Width | 304.8 mm |
| Power Requirements | (60 Hz): 100-120 VAC, 6.3 A, 750 W |
| Chamber Volume | 1 cu. ft. |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Gravity Convection |
| Weight | 19.5 kg |
| Cooling System | 0 |
| Number of Shelves | 2 |
| Temperature Precision | 0.5 °C |
| Shipping Weight | 50 lbs |
| Shipping Dimensions | 24in. × 21in. × 27in. |
