Thermo Scientific - Cytomat™ 10 C Series Automated Incubators
Designed to fit into the busiest of cell biology or screening laboratories, the Thermo Scientific™ Cy...

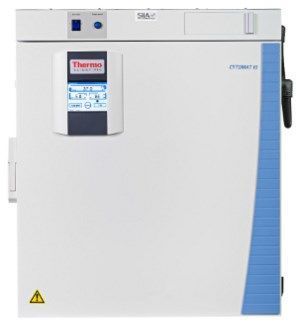

Designed to fit into the busiest of cell biology or screening laboratories, the Thermo Scientific™ Cytomat™ 10 Automated Incubator offers superior environmental control and can be seamlessly integrated with any existing automated system.
The Cytomat 10 is a fully automated incubator and storage module for high-capacity cell growth and assay incubation in a temperature range of ambient +10°C to 50°C combined with controlled humidity up to 98% r.H and stable CO2 conditions.
The Cytomat 10 provides a fast plate access time of less than 10 seconds. Additionally, multiple transfer positions and an under-bench version allow flexible incubator placement within the laboratory.
As the first generation of automated incubator with a fully automated thermal decontamination system, the Cytomat 10 is designed to significantly decrease the risk of contamination and reduce assay variability.
Active Questions & AnswersAsk a Question
There are no current Discussions
General Purpose Incubator Service ProvidersView All (29)
Documents & ManualsView All Documents
Features of Cytomat™ 10 C Series Automated Incubators
Matches your Capacity with 10 Stacker
- 280pcs. 1536-well plates
- 210pcs. 96-well or 384-well plates
- 150pcs. transwell or insert plates
- 100pcs. deep-well
- Further stacker types on request
- Mix and match different pitch stackers
Effortless Humidity Control
- HydraSmart Technology - Ultrasonic vapor technology with no turbulences and heat introduction into system
- Sterilized water supply by external accessible micro-particle filter
- Closed loop water delivery system, with simple external tank
- Water level monitoring with refill warning
- High Humidity up to 98% r.H. (option)
Fast
- Below 10sec. access time
- Application speed settings: slow, medium, fast
- Individual microplate speed settings
Contamination Prevention
- Automated decontamination routine with true walk-away time – ContraCon
- Easy to clean - smooth stainless steel surface
- Solid copper inner chamber (option)
- H2O2-flange (option)

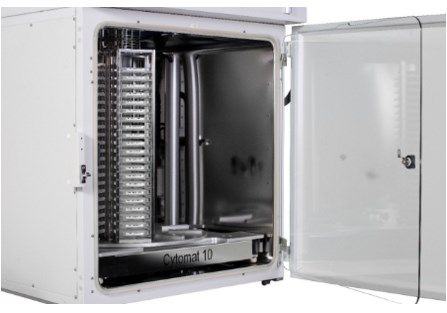

Flexible Stacker Design
- Compatible with existing Cytomat stacker
- Standard or customized stacker pitch sizes
- Mix and match different pitch stackers
- Autoclaveable, stainless steel
- Ventilation slots allow accurate temperature distribution
Convenient – Easy to use
- 5” Touch screen with LED backlight as standard
- Internal and direct barcode reader
- Various gate/transfer positions
Easy to integrate
- Intuitive software commands
- Flat gate, no gate cover
- SILA (Standard in Lab Automation) Compliant
- Multiple transfer stations
Many further options
- NextGen Display (NGD) wit user friendly icon driven graphical user interface
- CyMon - Cytomat Remote Monitioring Application including 10.1“ android tablet via WiFi
- SiLA interface option for fast and easy integration O2 control
- Solid copper inner chamber
- H2O2-flange
- High humidity (hH) up to 98% r.H. at 37°C
Certification
- CE
- RoHS
- Manufactured in ISO 9001 and ISO 13485 accredited facility
General Specifications
There are no General Specifications available.
Series Modals
Thermo Scientific - Cytomat™ 10 C450 Series
[+] View Model SpecificationsThere are no Models available.
