Labconco - Horizontal Clean Benches
Manufactured by Labconco
Purifier Horizontal Clean Benches direct HEPA-filtered air horizontally over the work area to provide ISO Class 5...

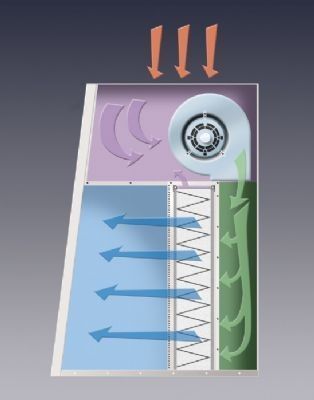

Purifier Horizontal Clean Benches direct HEPA-filtered air horizontally over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination. Applications for clean benches include plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation. Because they do not provide protection to the user, they should not be used in conjunction with biohazardous material, toxins or radionuclides.
Purifier Horizontal Clean Benches are available in 3', 4' and 6' widths. Purifier Stainless Steel Horizontal Clean Benches with stainless steel work surfaces are available in 6' and 8' widths.
Purifier Horizontal Clean Benches are available in 3', 4' and 6' widths. Purifier Stainless Steel Horizontal Clean Benches with stainless steel work surfaces are available in 6' and 8' widths.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & ManualsView All Documents
Features of Horizontal Clean Benches
Features
- Supply HEPA filter, 99.99% efficient on particles 0.3 micron
- Double-gasket, negative pressure HEPA filter leak protection
- ISO Class 5 air (formerly Class 100 per Federal Standard 209E)
- Disposable prefilter
- Variable speed built-in motor/blower(s) with vibration isolation pads
- Minihelic II pressure gauge
- UV-resistant, glacier white and gray, dry powder epoxy-coated steel construction
- Fluorescent lamp
- Front-mounted light and blower switches
- ETL Listing (115 volt, 60 Hz models)
- One year warranty on parts and service
- 254 nm UV lamp with interlocking safety switch allowing operation only when blower and fluorescent light are off
- Chrome-plated, forged brass service fixture(s) with quarter turn handle
- Models with melamine-laminated hardboard work surface in 4', 5' and 6' widths
- Models with stainless steel work surface and tempered safety glass side panel in 6' and 8' widths
- International electrical configurations
General Specifications
There are no General Specifications available.
Additional Specifications
Nominal Width: 3'
Electrical Requirements: Domestic
Sash Opening: 30.5"
Power Cord & Plug: 115 volts, 15 amps
Compliance: ETL
Series Modals
Labconco - 3600000, 3600004, 3600020, 3600024
[+] View Model Specifications| Depth | 34.75 in |
| Height | 48.5 in |
| Width | 38.25 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Available with Fluorescent or Fluorescent/UV |
| Construction | Glacier white epoxy-coated steel frame |
| Filter Type | HEPA |
| Fume Hood Type | Laminar Flow |
| Additional Model Specifications | Nominal width: 3'
Sash opening: 30.5" Compliance: ETL (or CE, model 3600024) Power supply: 3600000, 3600004: 115 V, 60 Hz, 12 A, Domestic 3600020, 3600024: 230 V, 50 Hz, 7 A, International |
Labconco - 3610000, 3610004, 3610020, 3610024
[+] View Model Specifications| Depth | 34.75 in |
| Height | 48.5 in |
| Width | 74.25 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Available with Fluorescent or Fluorescent/UV |
| Construction | Glacier white epoxy-coated steel frame |
| Filter Type | HEPA |
| Fume Hood Type | Laminar Flow |
| Additional Model Specifications | Nominal width: 6'
Sash opening: 30.5" Compliance: ETL or CE Power supply: 3610000, 3610004: 115 V, 60 Hz, 12 A, Domestic 3610020, 3610024: 230 V, 50 Hz, 7 A, International |
Labconco - 3612500, 3612504, 3612520, 3612524
[+] View Model Specifications| Depth | 34.75 in |
| Height | 48.5 in |
| Width | 50.25 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Available with Fluorescent or Fluorescent/UV |
| Construction | Glacier white epoxy-coated steel frame |
| Filter Type | HEPA |
| Fume Hood Type | Laminar Flow |
| Additional Model Specifications | Nominal width: 4'
Sash opening: 30.5" Compliance: ETL or CE Power supply: 3612500, 3612504: 115 V, 60 Hz, 12 A, Domestic 3612520, 3612524: 230 V, 50 Hz, 7 A, International |
Labconco - 3818500, 3818505
[+] View Model Specifications| Depth | 36.9 in |
| Height | 48.4 in |
| Width | 99 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Fluorescent |
| Construction | Stainless steel work surface. Glacier white epoxy-coated steel frame, interior rear panel and exterior panels |
| Filter Type | HEPA |
| Fume Hood Type | Laminar Flow |
| Additional Model Specifications | Nominal width: 8'
Sash opening: 30.6" Power supply: 3818500: 115 V, 60 Hz, 16 A, Domestic 3818505: 230 V, 50 Hz, 8 A, International |
Labconco - 3873000, 3873005
[+] View Model Specifications| Depth | 36.9 in |
| Height | 48.4 in |
| Width | 74 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Fluorescent |
| Construction | Stainless steel work surface. Glacier white epoxy-coated steel frame, interior rear panel and exterior panels |
| Filter Type | HEPA |
| Fume Hood Type | Laminar Flow |
| Additional Model Specifications | Nominal width: 6'
Sash opening: 30.6" Power supply: 3873000: 115 V, 60 Hz, 16 A, Domestic 3873005: 230 V, 50 Hz, 8 A, International |
