Labconco - Filtered PCR Enclosures
Manufactured by Labconco
Purifier Filtered PCR Enclosures direct HEPA-filtered air downward over the work area to provide ISO Class 5 (formerly...

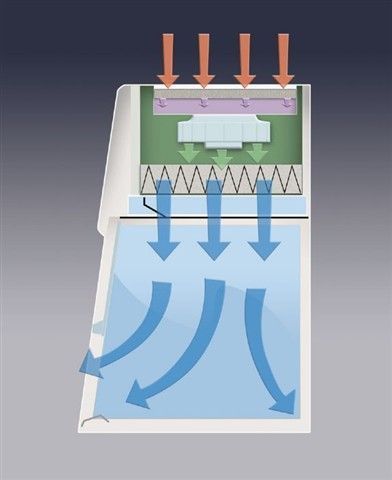

Purifier Filtered PCR Enclosures direct HEPA-filtered air downward over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination. These specialized vertical clean benches provide a controlled environment in which to perform polymerase chain reaction experiments. These enclosures include a variable digital timer that provides UV light exposure continuously or in user-selected increments of 5, 10, 15, 30, 60, 120 or 240 minutes to deactivate DNA and RNA contaminants. When the set time expires, the UV light automatically switches off in preparation for the next experiment.
Purifier Filtered PCR Enclosures do not provide protection to the user and should not be used in conjunction with biohazardous material, toxins or radionuclides.
Purifier Filtered PCR Enclosures are available in 2, 3 and 4 widths.
Purifier Filtered PCR Enclosures do not provide protection to the user and should not be used in conjunction with biohazardous material, toxins or radionuclides.
Purifier Filtered PCR Enclosures are available in 2, 3 and 4 widths.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Fume Hoods Service ProvidersView All (9)
Documents & ManualsView All Documents
Features of Filtered PCR Enclosures
Features
- Nominal downflow velocity of 45-65 fpm
- Aerodynamic air foil
- Supply HEPA filter, 99.99% efficient on particles 0.3 micron
- ISO Class 5 air (formerly Class 100 per Federal Standard 209E)
- Disposable prefilter
- Variable speed built-in blower with motorized impeller and solid state control rated for 10 amps
- Intrinsically-sound, negative pressure design
- Minihelic pressure gauge
- Air diffuser
- UV-resistant, glacier white and gray, dry powder epoxy-coated aluminum and steel construction
- UV-opaque and resistant 1/4" thick tempered safety glass sash and sides
- Fluorescent lamp
- 254 nm UV lamp
- Variable digital timer for UV exposure with eight settings in minutes of 5, 10, 15, 30, 60, 120, 240 and continuous
- Blower and 3-way light (flourescent, UV and off) switches
- 9.4" high sash opening
- Ergonomic 10° angled and hinged sash that pivots upward, locks to a loading height of 20" and has wiping seals to promote ISO Class 5 conditions
- Two utility ports with iris openings and plugs
- ETL Listing (115 volt, 60 Hz models)
- One year warranty on parts and service
- Built-in Guardian Airflow Monitor that continuously monitor downflow airflow and has two LED lights to indicate when airflow is within or outside set point range.
- 254 nm UV lamp with 3-way switch (fluorescent, UV and off) and bi-fold doors that close the sash opening
- 2', 3' and 4' widths
- International electrical configurations
General Specifications
There are no General Specifications available.
Additional Specifications
Nominal Width: 2'
Electrical Requirements: Domestic
Sash Opening: 9.4"
Power Cord & Plug: 115 volts, 15 amps
Compliance: UL 61010A-1, CAN/CSA C22.2 No. 1010.1
Listing: ETL
Built In Options: UV Timer
Series Modals
Labconco - 3970202, 3970205, 3970222, 3970225
[+] View Model Specifications| Depth | 28.6 in |
| Height | 36.8 in |
| Width | 24 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Fluorescent, variable timed UV |
| Construction | Dry powder epoxy-coated aluminum and steel |
| Filter Type | HEPA |
| Fume Hood Type | PCR Enclosure |
| Additional Model Specifications | Nominal width: 2'
Sash opening: 9.4" Compliance: UL 61010A-1, CAN/CSA C22.2 No. 1010.1 Listing: ETL or CR Built-in options: UV timer or UV timer & Guardian Air Monitor Power supply: 3970202, 3970205: 115 V, 60 Hz, 3 A, Domestic 3970222, 3970225: 230 V, 50 Hz, 2 A, International |
Labconco - 3970302, 3970305, 3970322, 3970325
[+] View Model Specifications| Depth | 28.6 in |
| Height | 36.8 in |
| Width | 36 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Fluorescent, variable timed UV |
| Construction | Glacier white and gray, dry powder epoxy-coated aluminum and steel |
| Filter Type | HEPA |
| Fume Hood Type | PCR Enclosure |
| Additional Model Specifications | Nominal width: 3'
Sash opening: 9.4" Compliance: UL 61010A-1, CAN/CSA C22.2 No. 1010.1 Listing: ETL or CR Built-in options: UV timer or UV timer & Guardian Air Monitor Power supply: 3970302, 3970305: 115 V, 60 Hz, 3 A, Domestic 3970322, 3970325: 230 V, 50 Hz, 2 A, International |
Labconco - 3970402, 3970405, 3970422, 3970425
[+] View Model Specifications| Depth | 28.6 in |
| Height | 36.8 in |
| Width | 48 in |
| Power Requirements | Available in Domestic and International |
| Lighting | Fluorescent, variable timed UV |
| Construction | Glacier white and gray, dry powder epoxy-coated aluminum and steel |
| Filter Type | HEPA |
| Fume Hood Type | PCR Enclosure |
| Additional Model Specifications | Nominal width: 4'
Sash opening: 9.4" Compliance: UL 61010A-1, CAN/CSA C22.2 No. 1010.1 Listing: ETL or CR Built-in options: UV timer or UV timer & Guardian Air Monitor Power supply: 3970402, 3970405: 115 V, 60 Hz, 3 A, Domestic 3970422, 3970425: 230 V, 50 Hz, 2 A, International |
