HEMCO Corporation - UniFlow Auxiliary Air Fume Hood
Manufactured by HEMCO Corporation
No Documents
UniFlow Auxiliary Air fume hoods reduce the loss of expensive tempered air from the laboratory. Ideal for laboratories...

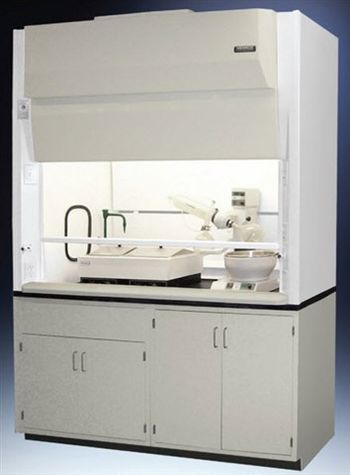

UniFlow Auxiliary Air fume hoods reduce the loss of expensive tempered air from the laboratory. Ideal for laboratories with inadequate make-up air supply. Auxiliary Air hoods come in 48”, 60”, 72” & 96” widths. Equipped with auxiliary air plenum to induce added airflow to the face opening of the fume hood. Supply air ducting and remote blower required. Auxiliary Air hoods are based on a 50% supply air to make up for room supply deficiency.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of UniFlow Auxiliary Air Fume Hood
UniFlow Superstructure exclusive unitize dual wall construction for superior chemical resistance, strength,and durability. Meets U.L. 1805, and NFPA-45 classification with flame spread of less than 25 per ASTM E-84.
Access Panel removable to access ducting connections and electrical services from a single point electrical box,115V/60Hz AC operation.
Full 30” Viewing Height with 28.5” sash opening height for ease of access and viewing tall apparatus setup. Sash is 3/16 thick tempered safety glass, vertical moving with single point counterbalance,contoured sash handle for efficient air flow and ease of movement.
Sash Stop located at 1/2 open sash reduces air flow by 50% and provides maximum user protection. Optional equipment. Cat. No. 51651
Air Flow Monitor continuously monitors face velocity airflow, analog or digital available. Meets ANSI and OSHA requirements. Optional equipment.
Plumbing Fixtures are color coded to specific service.
Fume Hood Fire Extinguisher optional feature
Epoxy Work Surfaces optional feature
Fume Hood Base Cabinet optional feature
General Specifications
There are no General Specifications available.
