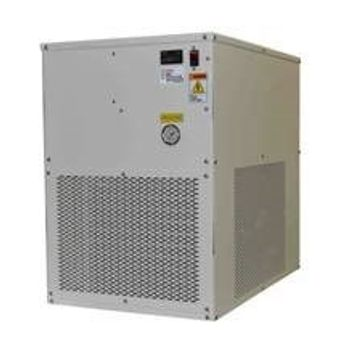

BV Thermal Systems - Benchtop Chiller
Manufactured by BV Thermal Systems
Benchtop Chillers from BV Thermal Systems are portable, whisper quiet, economical and environmentally friendly.
For decades Benchtop Chillers from BV Thermal Systems have been proven to be the preferred choice for those seeking quality temperature control equipment for their lasers, analytical equipment, laboratories and research institutions. These reliable benchtop chillers are well suited when space saving is required and reliability is expected.
Designed for use with rotary evaporators, vacuum systems, spectrometers, medical laboratories, lasers and university laboratories along with other analytical instrumentation. The simple set-up, day to day operation and low maintenance ensure that our benchtop chillers are lab-efficient and user-friendly.
Designed for use with rotary evaporators, vacuum systems, spectrometers, medical laboratories, lasers and university laboratories along with other analytical instrumentation. The simple set-up, day to day operation and low maintenance ensure that our benchtop chillers are lab-efficient and user-friendly.
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of Benchtop Chiller
Features Include:
Space Saving Design
Full featured PIC controller with easy Auto Tuning
Corrosion free wetted surfaces
Adjustable High & Low Temperature Alarms
External pressure – flow adjustment
Seamless polyethylene tank with easy fill 3″ port
General Specifications
There are no General Specifications available.
Series Modals
BV Thermal Systems - BTC-025
[+] View Model Specifications| Depth | 22 in |
| Flow Rate | 8.33 L/min |
| Height | 15.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 4.92 L |
| Width | 17 in |
| Power Requirements | 115V, 9A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 30 lbs |
| Additional Model Specifications |
BV Thermal Systems - BTC-033
[+] View Model Specifications| Depth | 22 in |
| Flow Rate | 8.33 L/min |
| Height | 15.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 4.92 L |
| Width | 17 in |
| Power Requirements | 115V, 12A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 130 |
| Additional Model Specifications |
BV Thermal Systems - BTC-050
[+] View Model Specifications| Depth | 22 in |
| Flow Rate | 8.33 L/min |
| Height | 15.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 4.92 L |
| Width | 17 in |
| Power Requirements | 200-230V, 8A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 142 lbs |
| Additional Model Specifications |
BV Thermal Systems - BTC-075
[+] View Model Specifications| Depth | 22 in |
| Flow Rate | 8.33 L/min |
| Height | 15.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 4.92 L |
| Width | 17 in |
| Power Requirements | 200-230V, 10A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 180 lbs |
| Additional Model Specifications |
