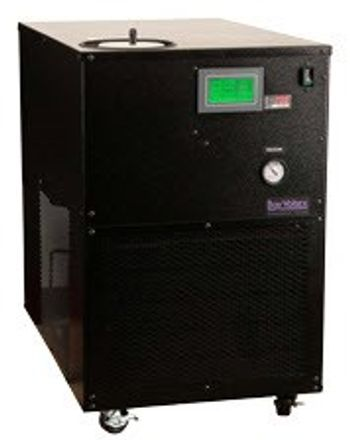

BV Thermal Systems - Laboratory Chiller
Manufactured by BV Thermal Systems
No Documents
Laboratory Chillers from BV Thermal Systems are portable, convenient, whisper quiet and designed, engineered and...
Laboratory Chillers from BV Thermal Systems are portable, convenient, whisper quiet and designed, engineered and manufactured for reliable and accurate cooling.
Our Laboratory Chillers have been optimized for such demanding and various applications as: rotary evaporators, Electron microscopy, AAS (Atomic Absorption Spectrometry), ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry), ICP-MS (Inductively Coupled Plasma Mass Spectrometer), XRF (X-ray Fluorescence), XRD (X-ray Diffraction), Sputtering systems, Lasers, Distillation, Diffusion pumps, blood cooling systems, and so many more. Our Laboratory Chillers are easy to use, and easy to maintain which makes them the preferred choice for laboratories everywhere.
Our Laboratory Chillers have been optimized for such demanding and various applications as: rotary evaporators, Electron microscopy, AAS (Atomic Absorption Spectrometry), ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry), ICP-MS (Inductively Coupled Plasma Mass Spectrometer), XRF (X-ray Fluorescence), XRD (X-ray Diffraction), Sputtering systems, Lasers, Distillation, Diffusion pumps, blood cooling systems, and so many more. Our Laboratory Chillers are easy to use, and easy to maintain which makes them the preferred choice for laboratories everywhere.
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of Laboratory Chiller
Laboratory Chillers Features
Full featured PID controller with easy Auto-tuning
External pressure – flow adjustment
Seamless polyethylene tank with easy fill 3″ port
Touch screen control with safety package – (optional)
Hot gas bypass
Level, flow & temperature remote signals
Corrosion free wetted surfaces
Adjustable high & low temperature
One positive displacement pump
Four locking non-marring casters
General Specifications
There are no General Specifications available.
Series Modals
BV Thermal Systems - MC075
[+] View Model Specifications| Depth | 22 in |
| Flow Rate | 8.33 L/min |
| Height | 29 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 4.92 L |
| Width | 14.5 in |
| Power Requirements | 200-230V, 10A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 180 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC100
[+] View Model Specifications| Depth | 27 in |
| Flow Rate | 8.33 L/min |
| Height | 29.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 7.57 L |
| Width | 36 in |
| Power Requirements | 200-230V, 12A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 258 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC1000
[+] View Model Specifications| Depth | 45 in |
| Flow Rate | 37.85 L/min |
| Height | 42.25 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 65 in |
| Power Requirements | 460V-3, 20A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 955 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC150
[+] View Model Specifications| Depth | 27 in |
| Flow Rate | 15.14 L/min |
| Height | 29.75 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 7.57 L |
| Width | 36 in |
| Power Requirements | 200-230V, 20A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 270 |
| Additional Model Specifications |
BV Thermal Systems - MC1500
[+] View Model Specifications| Depth | 45 in |
| Flow Rate | 75.71 L/min |
| Height | 42.25 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 65 in |
| Power Requirements | 460V-3, 28A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 1100 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC200
[+] View Model Specifications| Depth | 32 in |
| Flow Rate | 15.14 L/min |
| Height | 39 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 38 in |
| Power Requirements | 200-230V, 17A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 404 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC300
[+] View Model Specifications| Depth | 32 in |
| Flow Rate | 15.14 L/min |
| Height | 39 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 38.5 in |
| Power Requirements | 200-230V, 20A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 442 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC400
[+] View Model Specifications| Depth | 33 in |
| Flow Rate | 37.85 L/min |
| Height | 48 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 48.5 in |
| Power Requirements | 200-230V, 16A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 484 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC500
[+] View Model Specifications| Depth | 33 in |
| Flow Rate | 37.85 L/min |
| Height | 48 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 48.5 in |
| Power Requirements | 200-230V, 20A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 531 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC600
[+] View Model Specifications| Depth | 45 in |
| Flow Rate | 37.85 L/min |
| Height | 42.25 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 65 in |
| Power Requirements | 200-230V, 22A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 720 lbs |
| Additional Model Specifications |
BV Thermal Systems - MC800
[+] View Model Specifications| Depth | 45 in |
| Flow Rate | 37.85 L/min |
| Height | 42.25 in |
| Temperature Range | 5 to 35 °C |
| Reservoir Volume | 26.5 L |
| Width | 65 in |
| Power Requirements | 200-230V, 26A |
| Temperature Stability | 0.1 °C |
| Temperature System | Chilling |
| Weight | 825 lbs |
| Additional Model Specifications |
