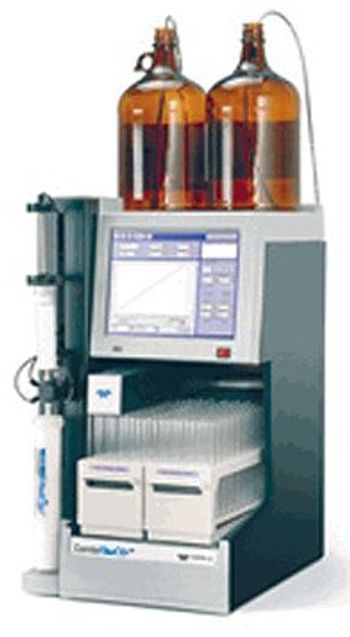

Teledyne Isco - CombiFlash® Rf+
No Documents
RFID method automation, more fractions, larger screen, higher pressure – all in a smaller package.
The TLC to Gradient calculator automatically determines optimal separation parameters while minimizing run time.
There is no need to wait to access data - built in networking allows you to connect to the CombiFlash® Rf+ to monitor and remotely control your experiment, analyze data, and print to network printers.
View UV spectra in real time - during peak elution. Review the spectra to confirm that the system is monitoring the correct wavelength. Interactive screen lets you change parameters instantly during the run if another wavelength would be more appropriate.
Rapid column air purge prevents solvent from being discarded with the used column. It is better for the environment, safer in the lab, and eliminates messy column removal.
Easy scale-up with built-in method-scaling means you won't need to re-develop your method. You save time when you increase reaction size. You can even scale up to a 3 kg column run on a CombiFlash Torrent.
Active Questions & AnswersAsk a Question
There are no current Discussions
Preparative HPLC Service ProvidersView All (16)
Documents & Manuals
There are no Documents or Manuals available.
Features of CombiFlash® Rf+
General Specifications
| Depth | 17 in |
| Height | 24 in |
| Width | 14.1 in |
| Weight | 54 lbs |
Additional Specifications
Controller
10.4 inch touchscreen (26.4 cm), or external web browser via Ethernet. Data and current run can be accessed by up to 10 remote computers. Front panel USB port to save data and transfer files.
PeakTrak software for
On-screen method development; Real-time control - change method parameters during a run without pausing; Converting Rf values into solvent gradients; Method scaling -transfer method from one size column to another, from 4 g to 330 g; Converting methods to 3000 g columns for operation on CombiFlash Torrent; Color-coded fraction identification.
Remote Wireless Access
Monitor system operation while away from the lab using iPad, iPhone, or iPod. Change conditions on the fly.
Programmable gradients
Linear and/or step gradients. Change profiles anytime during run, using "Click and drag" gradients. Pause gradient for isocratic hold.
Pumping system
Positive displacement pumps. 1-200 mL/min. 0-200 psi (when used with RediSep Rf columns)
Number of Solvents
Binary gradient with any two of four solvents; A third solvent can be used to add modifier at a fixed percentage.
Gradient Formation
Low pressure gradient formation, Accuracy <2% full scale; Linear, step, isocratic mixing capability
Auto-Method (RFID)
RFID column detection, RFID Test Tube Rack identification
Column sizes
4 g to 330 g
Fraction collection
Internal fraction collector capacity- 13x100 mm tubes - 216, 16x125/150 mm tubes - 150, 18x150/180 mm tubes - 140, 25x150 mm tubes - 60, 40 mL scintillation vials - 60, 20 mL scintillation vials - 54, 480 mL bottles - 12.
Fraction Size
Determined by peak cutting and by user-defined maximum tube volume
Sample injection
Auto-inject with 6-position automated motorized sample loading valve; self-cleans at end of run; solid or liquid injection
Detection
Software selectable variable wavelength UV, 200-400 nm; optional variable wavelength UV-Vis, 200-800 nm; slope and threshold peak detection; detector range 0.2-2.4 AUFS; determination of peak purity by wavelength ratios.
Safety
Static dissipating tubing, vapor sensor, and column air purge.
Sample security
Auto-run extension at end of run, and over pressure sensor.
Solvent management
Four solvent and one waste fluid level monitoring
