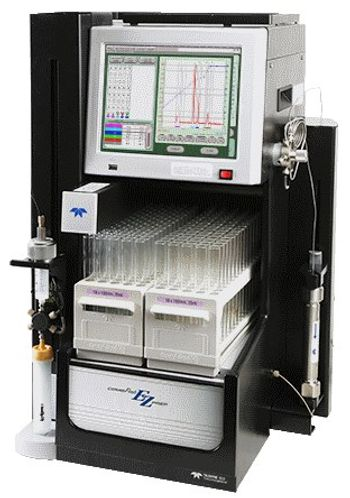

Teledyne Isco - CombiFlash® EZ Prep

Manufactured by  Teledyne Isco
Follow this Equipment

Streamline Flash and Preparative HPLC chromatography with a compact, easy-to-operate unit

The CombiFlash EZ Prep streamlines the purification process, quickly switching from Flash to high-pressure preparative chomatography in just two clicks. Pre-purify on Flash followed by Prep for submission quality compounds.

User-friendly PeakTrak® software controls both Flash and Prep HPLC chromatographic conditions. Additionally, PeakTrak integrates all detector options, including the CombiFlash PurIon mass spectrometer for single point control.
Active Questions & AnswersAsk a Question

There are no current Discussions

Preparative HPLC Service ProvidersView All (16)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of CombiFlash® EZ Prep
  • Up to 3500 psi (240 bar) and 200 mL/min
  • Run Prep HPLC columns up to 50 mm in diameter (including 5 µm particle diameter)
  • Flash purification for 10 milligram to 33 grams followed by final compound purification on high performance columns
  • UV, UV-Vis, ELSD and MS detection options available
  • Switch between normal and reverse phase solvents
    • General Specifications
    Depth 16.9 in
    Height26.8 in
    Width 17 in
    Additional Specifications

    Flow Rate Range
    5-200 mL/min (Flash & Prep)
    Pump Prime
    Self-priming
    Maximum Pressure (Flash Operation)
    200 psi (13.8 bar)
    Maximum Pressure (High Pressure Operation)
    Up to 3500 psi (240 bar)
    UV and UV Vis Detection
    UV 200-400 nm standard, UV vis 200-800 nm optional
    ELSD Detection
    Built-in detector compatible with either UV or UV-Vis
    Mass Spectometer
    Three models with mass ranges of 10-1200 and 10-2000 Da
    Number of Solvents
    Binary gradient between any two of four solvents
    Programmable Gradients
    Linear, step, isocratic
    Sample Introduction (Flash)
    Solid or liquid load
    Sample Introduction (Prep)
    Variable volume liqid load (5mL loop standard)
    User Interface
    10.4" touchscreen
    Fraction Collector
    Internal
