Integra Biosciences - VOYAGER II

Manufactured by  Integra Biosciences
Follow this Equipment

Adjustable Tip Spacing Pipette

VOYAGER II Pipettes - Speed up sample transfers between different labware

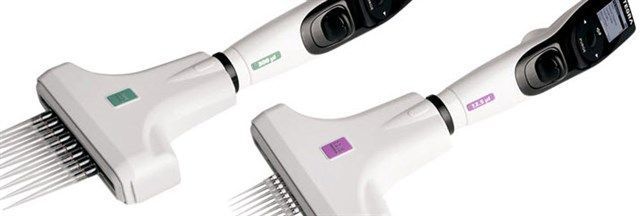

INTEGRA's VOYAGER II pipettes feature a unique motorized tip spacing, enabling parallel transfer of multiple samples between labware of different sizes and formats. The tip spacing can be changed by a simple push of a button. No manual adjustments or two handed operations are needed.
Active Questions & AnswersAsk a Question

There are no current Discussions

Pipettes Service ProvidersView All (10)

Request Support
Features of VOYAGER II

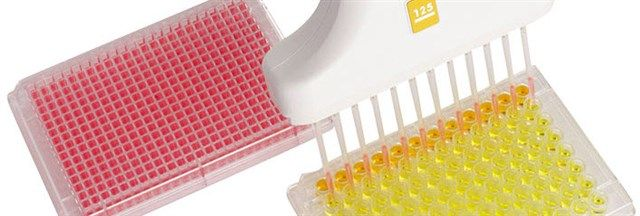

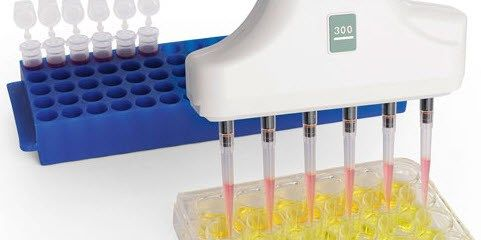

Electronically Adjustable Tip Spacing             The VOYAGER II pipettes feature the only motorized adjustable tip spacing in the industry. By the push of a button it allows the tip spacing to expand anywhere between 4.5 mm and 33 mm (depending on the model). This enables access to a wide variety of labware, such as microplates, tube racks and gel boxes. Refer to the application tab for examples and a detailed description of the tip spacing options.

The motorized tip spacing offers many advantages over manual tip spacing adjustments:

  • Single handed operation leaves the other hand free to handle labware.
  • On the fly access to up to 3 user-defined tip spacings.
  • These user defined tip spacings are saved. No need to memorize spacings of different labware formats.

GripTips snap on        Do your pipette tips ever loosen, leak or fall off? This is a common issue in laboratories, caused by the use of universal pipette tips. Such tips require “hammering on” which stretches the shape of the pipette tip rim. The stretched pipette tip rim immediately starts moving back to its original shape, away from the tip cone. This can cause leaking, misaligned tips and even pipette tips that completely fall off the pipette!

This will never happen with any VOYAGER II electronic pipette / GripTip combination. Featuring a low attachment force and a low ejection force, GripTips effortlessly snap onto the tip fittings and are easily ejected. Also, GripTips feature a high lateral resistance once attached to the VOYAGER II pipettes. This means GripTips are always firmly attached and perfectly aligned, regardless of how many side well touch offs are performed. You no longer have to hammer your pipette tips on or worry about pipette tips falling off!

Touch Wheel Interface            The Touch Wheel interface offers a quick and ergonomic way to modify pipetting parameters. It enables you to browse through menus, change pipetting volumes and speeds or other settings.

Instead of repeatedly pressing buttons or twisting fingers to modify volumes, you simply slide your finger over the Touch Wheel. Changing a dispense volume has never been so fast and easy!

Full Color Screen            All INTEGRA pipettes feature full text menus, displaying pipetting protocols without abbreviations. This makes INTEGRA pipettes particularly easy to understand and intuitive to use.

The entire menu structure is available in English, French, German, Spanish, Chinese and Japanese.

Various Pipetting Modes            For the most common liquid handling tasks 10 preset pipetting programs are available, in which only basic parameters such as volume and speed need to be defined.

  • Pipet
  • Repeat Dispense
  • Sample Dilute
  • Pipet/Mix
  • Manual Pipet
  • Reverse Pipet
  • Variable Dispense
  • Variable Aspirate
  • Sample Dilute/Mix
  • Serial Dilution

For more elaborate pipetting protocols, up to 40 user defined custom programs can be created. The custom program is a step-based setup queuing liquid handling steps such as aspirate, dispense, mix and more.

VIALINK Software            NTEGRA electronic pipettes can be connected to VIALINK, a pipette management software. With VIALINK even complex custom programs can be quickly created and stored in a library on the computer, ensuring a backup is always available. Then, copy the programs onto your pipette to start your assay.

To connect a pipette to the PC and VIALINK, a charging / communication stand (4211) or a linear stand with charging /communication station (3215 and 3218) is required.
