Integra Biosciences - CELLine
Manufactured by Integra Biosciences
Having troubles expressing enough recombinant protein?> Boost your production of m...
Having troubles expressing enough recombinant protein?
CELLine classic
CELLine classic (CL) is ideal for laboratory scale applications using suspension cells or adherent cells in combination with microcarriers. The unit is optimised for cultivation of hybridomas and many other cell types (e.g. CHO, NSO, SF cells).
CELLine adhere
CELLine adhere (AD) is specifically adapted to allow growth of anchorage-dependent cells (e.g. HEK, BHK, CHO cells). The bioreactor contains a woven, polyethylene terephtalate (PET) matrix in the cell compartment providing an ideal surface for cell attachement.
- Boost your production of monoclonal antibodies or recombinant proteins by cultivating cells at highest densities with CELLine, the disposable bioreactor based on Two-Compartment Technology.
- Efficient protein expression 50–100 times higher product concentrations compared to classic cell culture disposables
- Easy operation as simple as using a tissue culture flask
- Cost efficient 90% less media supplements and reduced handling time

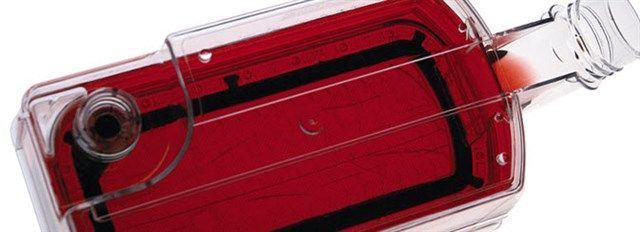

CELLine classic
CELLine classic (CL) is ideal for laboratory scale applications using suspension cells or adherent cells in combination with microcarriers. The unit is optimised for cultivation of hybridomas and many other cell types (e.g. CHO, NSO, SF cells).
CELLine adhere
CELLine adhere (AD) is specifically adapted to allow growth of anchorage-dependent cells (e.g. HEK, BHK, CHO cells). The bioreactor contains a woven, polyethylene terephtalate (PET) matrix in the cell compartment providing an ideal surface for cell attachement.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fermenters / Bioreactors Service ProvidersView All (3)
Documents & ManualsView All Documents
Features of CELLine
Two-compartment technology
Efficient cell cultivation relies on maintaining an optimal supply of oxygen and nutrients, as well as on removing inhibiting metabolic waste products efficiently. These factors limit the maximum cell density obtainable from standard, homogeneous cell culture techniques which are consequently poor at achieving high expression levels of proteins.
The Two-Compartment Bioreactor CELLine is designed to overcome such limitations. The innovative CELLine technology separates the bioreactor into a medium and cell compartment by means of a 10 kDa semi-permeable membrane. This membrane allows a continuous diffusion of nutrients into the cell compartment with a concurrent removal of any inhibitory waste product. The individual accessibility of the compartments allows to supply cells with fresh medium without mechanically interfering with the culture.
Efficient gas transfer is ensured by a silicone membrane which forms the cell compartment base. This membrane provides an optimal oxygen supply and control of carbon dioxide levels by providing a short diffusion pathway to the cell compartment. All together, the technology built into CELLine allows simulating quasi in vivo cultivation conditions leading to high cell densities.
Easy Operation

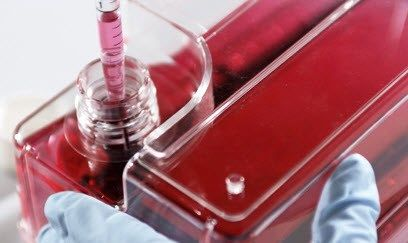

Due to its uncomplicated design working with the CELLine bioreactor is as simple as with any standard tissue culture flask. For a straightforward control of the growth process, microscopic observation of the cells is made possible by the transparent design of the CELLine classic bioreactor. The system operates independently of any complicated control technology and works without any pump systems or agitation devices. Easily and securely stackable, CELLine flasks occupy a minimum of space in any standard CO2 incubator.
A specific adaptation of the cell culture techniques or media composition is generally not necessary when starting to work with CELLine and both, serum-supplemented or serum free media are suitable.
Cost efficiency
CELLine has been designed to bring substantial cost savings to cell cultivation. Labour costs are considerably reduced, because fewer disposable flasks need to be handled compared to other culture techniques in order to produce milligram amounts of protein.
Also the expenses for media supplements are significantly reduced, since the addition of serum or other synthetic additives can be limited to the cell compartment. Furthermore, the high production yield and quality obtained in the relatively small culture volume of CELLine contribute to reduce costs and labour time in the subsequent downstream processing steps of the product.
Animal welfare
CELLine is a disposable bioreactor that is competitive in costs and performance to the production of monoclonal antibodies using mice ascites. As an added benefit, when expressing monoclonal antibodies in hybridomas using CELLine, the antibody preparation is free of any contamination from mouse immunoglobulins.
Over recent years, CELLine technology has been successfully adopted worldwide for the production of monoclonal antibodies and thereby has contributed diminishing the use of laboratory mice.
General Specifications
There are no General Specifications available.
Series Modals
Integra Biosciences - CELLine AD 1000
[+] View Model Specifications| Depth | 275 mm |
| Height | 80 mm |
| Width | 180 mm |
| Weight | 336 g |
| Additional Model Specifications | Medium compartment cap
38 mm vented (0.2 µm), black polypropylene cap with polypropylene liner Cell compartment cap 28 mm polypropylene cap with polyethylene liner Cell compartiment inlay PET matrix inlay Microscopic viewing (inverted microscope) limited visibility due to inlay matrix Vertical and horizontal volume markings 100–1000 ml |
Integra Biosciences - CELLine CL 1000
[+] View Model Specifications| Depth | 275 mm |
| Height | 80 mm |
| Width | 180 mm |
| Weight | 334 g |
| Additional Model Specifications | Medium compartment cap
38 mm vented (0.2 µm), white polypropylene cap with polypropylene liner Cell compartment cap 28 mm polypropylene cap with polyethylene liner Cell compartiment inlay none Microscopic viewing (inverted microscope) center window requires objective working distances of 2.5 mm Vertical and horizontal volume markings 100–1000 ml |
Integra Biosciences - CELLine CL 350
[+] View Model Specifications| Depth | 190 mm |
| Height | 62 mm |
| Width | 95 mm |
| Weight | 185 g |
| Additional Model Specifications | Medium compartment cap
28 mm vented (0.2 µm), green polypropylene cap with polypropylene liner Cell compartment cap 24 mm polypropylene cap with polyethylene liner Cell compartiment inlay none Microscopic viewing (inverted microscope) center window requires objective working distances of 2.5 mm Vertical and horizontal volume markings 50–350 ml |
