Fermentation System
proSET Evo System is equipped with the latest control software; this user-friendly, intuitive software incorporates with many advanced functions to boost your experiment efficiency and thus lead to the success. Besides the manual controls of agitation, temperature, pH, DO level and feeding, one can also execute 15-step scheduled sequence controls on above parameters as well as pH and DO feedback controls. Moreover, a broad selection of plug-and-play optional devices are available to meet your specific requirement.
PC software connects up to 16 systems 16 vessels at the same time.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fermenters / Bioreactors Service ProvidersView All (3)
Documents & Manuals
There are no Documents or Manuals available.
Features of proSET Evo
General Specifications
There are no General Specifications available.
Additional Specifications

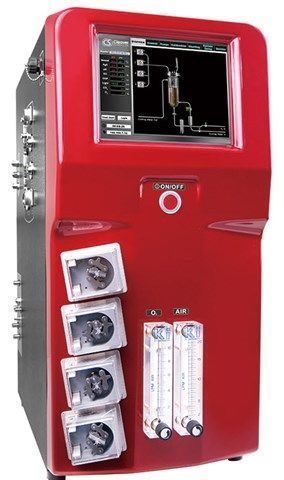

[u]Control unit[/u]
Control panel
10.4” color touch-screen Interface (Resolution: 800 x 600 pixels)
Communication port
Remote control through Ethernet
Data export through USB port
Analog AUX port for system extension
Number of vessels controlled per remote control software
Max. 16
Program storage
Up to 59,994 programs for different kinds of condition
Log data storage
Up to 100 process monitoring data files
Cabinet material
ABS front panel and painted iron housing
Rated voltage
110V~/220V~; 50/60 Hz, 10A
[u]Aeration[/u]
Inlet gas flow-meter
0, 0.1-1LPM (0.5L); 0, 0.4 - 5LPM (1L); 0, 1 - 10LPM (3, 5L); 0, 2 - 20LPM (10L); 0, 4 – 50LPM (15, 20L)
Sparger
Orifice ring
Baffle
Removable 316L stainless steel baffles
[u]Temperature[/u]
Heating
1. Thermostat System: built-in heat exchanger (550W heater, water circulation pump)

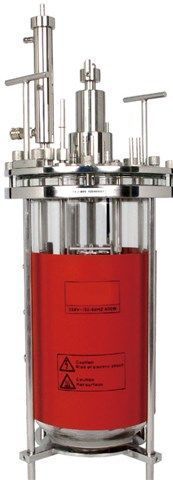

2. Dry heating system (heating blanket or heating base unit)
Cooling
Cooling coil valve
Range
with FS-V-A / B / C series : 5°C (41°F) above coolant up to 60°C (140°F); with FS-V-D series :5°C(41°F) above coolant up to 90°C (194°F);
Probe
Platinum RTD probe (PT-100), non autoclavable
Control mode
Manual or Programmable 15 steps PID control
[u]Agitation[/u]
Drive
Removable top brushless motor (M3 for 0.5L, 1L; M2 for 3~20L)
Speed range
a. For extremely shear-sensitive cell line: 30-300rpm b. For fermentation and cell culture: 30 - 1200rpm (0.5-5L); 30 - 1000rpm (10L); 30 – 700rpm(15, 20L)
Resolution
1rpm
Impeller
2 impellers for 0.5L &1L vessel and double jacketed vessels 3 impellers for 3L vessel and above Note: Customized impellers are available upon ordering
Control mode
Manual or Programmable 15 steps PID control
[u]pH[/u]
Range
2 - 14pH
Resolution
0.01pH
Probe
Gel-filled electrode, autoclavable
Control mode
Manual/programmable 15 steps PID control with adjustable deadband, pH stat with smart feeding technology
[u]DO[/u]
Range
0 - 200%
Resolution
0.10%
Probe
Polarographic DO sensor; autoclavable
Control mode
2-stage DO cascade response a. Increase or decrease agitation speed b. Oxygen Enrichment module(Optional) c. Gas Mixing Station module(Optional) DO stat with smart feeding technology
[u]ORP(optional)[/u]
Measurement range
-/+ 2000mV
Resolution
1mV
Probe
Gel-filled electrode: autoclavable
[u]Foam / Level[/u]
Probe
316L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control
Control Mode
[i]Foam:[/i] On/Off switch
[i]Level:[/i] On/Off switch control with wet/dry probe set up
[u]Peristaltic Pump[/u]
Pump number
4 x built-in pumps, 1 to 2 external pumps (Optional)
Motor type
Precise stepping motor; minimum speed is 1rpm
Speed range
0 to 65rpm
Resolution
1rpm
Control mode
Manual or Programmable 15 steps feeding control; pump can be assigned for Acid, Base, Antifoam and/or Substrate; pump can calculate flow rate and total volume
[u]Exhaust[/u]
Device type
316L stainless steel condenser
