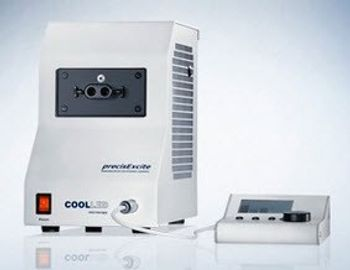

Olympus - precisExcite

Manufactured by  Olympus
Follow this Equipment

Fluorescence Light Source

The precisExcite LED light source is designed for use with all Olympus epi-fluorescent microscopes. Up to four wavelengths can be driven individually or in combination and intensity can be adjusted per wavelength in 1% increments. LEDs have very long lifetimes, greatly reducing running costs, and can be switched almost instantaneously with no additional shutters required. Coupling via the light guide allows remote placement to reduce vibration and heat at the microscope frame, while USB and ethernet interfaces enable seamless integration with the cellSens imaging software for the automation of complex imaging tasks.
Active Questions & AnswersAsk a Question

There are no current Discussions

Microscope Accessories Service ProvidersView All (10)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of precisExcite
Freedom of Choice  precisExcite LED systems can be configured with up to four LED array modules (LAMs). A choice of 19 different wavelengths is available (365, 380, 400, 425, 440, 470, 490, 500, 525, 535, 550, 565, 585, 595, 615, 635, 660, 700, 740, 770 nm).     Long-lifetime LEDs  LEDs have extremely long lifetimes of tens of thousands of hours. This almost eliminates the need to exchange them and greatly reduces running costs and maintenance effort.     Fast On/Off Switching  LEDs can be switched almost instantaneously and offer the advantage that no additional shutters are required.     Less Vibration and Heat  Indirect coupling via the light guide allows remote placement of the unit, thus reducing vibration and heat at the microscope frame.     Standalone Control  The precisExcite light source enables LEDs to be switched on or off individually and used in combination. It also allows LED intensity to be adjusted individually per wavelength from 0 % to 100 % in 1 % increments.     Software Control  USB and ethernet interfaces allow the light source to be integrated seamlessly into the cellSens imaging software, which enables the easy automation of complex multi-dimensional imaging tasks.
General Specifications
Depth 255 mm
Height215 mm
Width 140 mm
Additional Specifications

LED Array Modules
Two to four LED Array modules
LED Life Time
< 7 % intensity loss after 10000 h
Available Wavelengths
365, 380, 400, 425, 440, 470, 490, 500, 525, 535, 550, 565, 585, 595, 615, 635, 660, 700, 740, 770nm and white
Light Guides
2 liquid light guide Ø 3mm, 1m length
Interfaces
USB
Ethernet
TTL
Control
Remote control pod for On/Off intensity 0-100 % in 1 % increments
cellSens Imaging software
Switching
<10 ms (USB)
<300 µs (TTL)
Power Supply
Internal
