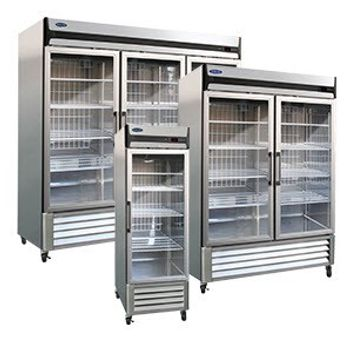

Nor-Lake - Grand™ Series Glass Door Refrigerators

Manufactured by Nor-Lake

No Documents

Nor-Lake’s advanced engineered commercial design incorporates the latest in cabinet, refrigeration and temperature...

Nor-Lake’s advanced engineered commercial design incorporates the latest in cabinet, refrigeration and temperature control and monitoring features. Full size Reach-in Refrigerators provide energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of commercial and industrial cold storage applications.

Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features of Grand™ Series Glass Door Refrigerators

Available in 1, 2 and 3 doors

Exterior cabinet sides are stainless steel; exterior top, back and bottom are galvanized steel

Interior cabinet liner and door panel are stainless steel

Full view glass door(s)

Adjustable temperature control range: +2°C to +10°C, factory preset at +4°C

Top mounted key door locks

Bottom mounted refrigeration system

UL, C-UL, ETL Sanitation, ENERGY STAR® listed

General Specifications

There are no General Specifications available.

Series Modals

Nor-Lake - GR23SSG/0 One Door

[+] View Model Specifications

Nor-Lake - GR49SSG/0 Two Doors

[+] View Model Specifications

Nor-Lake - GR72SSG/0 Three Doors

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	33 in
Height	83.75 in
Internal Depth	27 in
Refrigerator Capacity	23 cu. ft.
Internal Height	61 in
Width	27.5 in
Internal Width	23.75 in
Number of Shelves	4
Shipping Weight	308 lbs
Additional Model Specifications	Number of Casters 4 Condensing Unit Size 3/8 HP Refrigerant R-134a Total Amp Draw 5.0 Voltage Description 115/60/1 NEMA Plug Configuration 5-15P Cord and Plug Furnished Yes NEMA Receptacle 5-15R

Depth	27 in
Height	83.75 in
Internal Depth	27 in
Refrigerator Capacity	49 L
Internal Height	83.75 in
Width	55.25 in
Internal Width	51.5 in
Number of Shelves	8
Shipping Weight	483 lbs
Additional Model Specifications	Number of Casters 4 Condensing Unit Size 3/5 HP Refrigerant R-404a Total Amp Draw 6.8 Voltage Description 115/60/1 NEMA Plug Configuration 5-15P Cord and Plug Furnished Yes NEMA Receptacle 5-15R

Depth	33 in
Height	83.75 in
Internal Depth	27 in
Refrigerator Capacity	70 cu. ft.
Internal Height	61 in
Width	78 in
Internal Width	74.25 in
Number of Shelves	12
Shipping Weight	653 lbs
Additional Model Specifications	Number of Casters 6 Condensing Unit Size 3/5 HP Refrigerant R-404a Total Amp Draw 7.6 Voltage Description 115/60/1 NEMA Plug Configuration 5-15P Cord and Plug Furnished No NEMA Receptacle 5-15R
