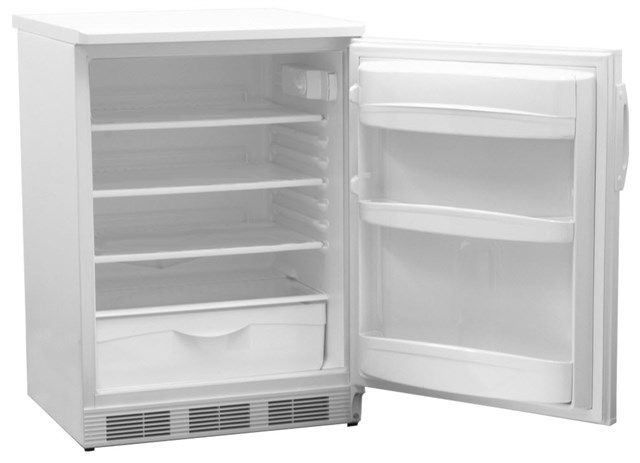

Nor-Lake - LR061WWW/0 - Undercounter / Freestanding Laboratory Refrigerator
Manufactured by Nor-Lake
No Documents
Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design...
Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical, and industrial applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of LR061WWW/0 - Undercounter / Freestanding Laboratory Refrigerator
Adjustable control range:+2°C to +8°C; factory preset at +4°C
Exterior front, door, top and sides are painted white
Interior liner and interior door panel are white durable vacuum formed poly with seamless rounded corners for easy cleaning
Cabinet and door are foamed-in-place with CFC free high density polyurethane foam insulation
Stackable design with optional stacking kit
Pull door handle
Door lock (2 keys)
(3) adjustable and removable glass shelves
(1) bottom stationary removable shelf
(3) door shelves, (1 adjustable)
Interior light
Thermostatic control unit (7) settings
(2) front leveling legs
115/60/1 cord and plug
Base mount refrigeration system
Refrigerators may be built in on three sides, air intake and exhaust is through the base, top and rear of the unit
Compatible with laboratory case work dimensions
Air-cooled condensing unit
Automatic defrost
Drain pan evaporation
Magnetic door gasket
Recessed kick plate
Reversible door
UL, C-UL listed
General Specifications
| Depth | 24.8 in |
| Height | 33.5 in |
| Internal Depth | 17.75 in |
| Refrigerator Capacity | 5.5 cu. ft. |
| Internal Height | 27.5 in |
| Width | 23.6 in |
| Internal Width | 20.75 in |
| Refrigerator Orientation | Undercounter |
| Number of Shelves | 4 |
| Shipping Weight | 100 lbs |
Additional Specifications
Number of Leveling Feet
2
Condensing Unit Size
1/5 HP
Refrigerant
R-134a
Voltage Description
115/60/1
NEMA Plug Configuration
5-15P
NEMA Receptacle
5-15R
Total Amp Draw
1.0
