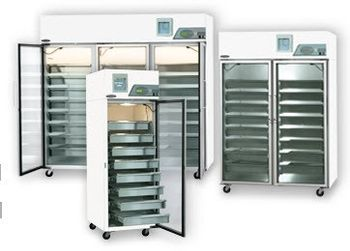

Nor-Lake - Blood Bank Refrigerators

Manufactured by Nor-Lake

No Documents

Designed to meet the AABB, ANRC and FDA requirements. Advanced engineered design incorporates the latest in cabinet,...

Designed to meet the AABB, ANRC and FDA requirements. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical and industrial applications.

Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features of Blood Bank Refrigerators

Microprocessor controller with LCD control panel with message center

Operating temperature: 4°C

Exterior and interior painted white

8 solid pull out stainless steel shelves per door

Complete cabinet is foamed-in-place CFC free high-density polyurethane foam insulation

UL, C-UL listed

General Specifications

There are no General Specifications available.

Series Modals

Nor-Lake - NSBR241WWG/0

[+] View Model Specifications

Nor-Lake - NSBR241WWG/5

[+] View Model Specifications

Nor-Lake - NSBR331WWG/0

[+] View Model Specifications

Nor-Lake - NSBR331WWG/5

[+] View Model Specifications

Nor-Lake - NSBR522WWG/0

[+] View Model Specifications

Nor-Lake - NSBR522WWG/5

[+] View Model Specifications

Nor-Lake - NSBR803WWG/0

[+] View Model Specifications

Nor-Lake - NSBR803WWG/5

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	35.5 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	24 cu. ft.
Internal Height	59 in
Width	27.5 in
Internal Width	23.5 in
Shipping Weight	451 lbs
Additional Model Specifications	450 ML Bags # Units 416 Number of Drawers 8 Number of Casters 4 Condensing Unit Size 1/4 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 4.9

Depth	35.5 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	24 cu. ft.
Internal Height	59 in
Width	27.5 in
Internal Width	23.5 in
Shipping Weight	451 lbs
Additional Model Specifications	450 ML Bags # Units 416 Number of Drawers 8 Number of Casters 4 Condensing Unit Size 1/4 HP Refrigerant R-134a Voltage Description 230/50/1 NEMA Plug Configuration Power Inlet (IEC 60320) Module NEMA Receptacle Cord Supplied Locally Total Amp Draw 3.2

Depth	36.5 in
Height	87.6 in
Internal Depth	31 in
Refrigerator Capacity	33 cu. ft.
Internal Height	67 in
Width	31.75 in
Internal Width	27.75 in
Shipping Weight	526 lbs
Additional Model Specifications	450 ML Bags # Units 600 Number of Drawers 8 Number of Casters 4 Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 8.0

Depth	36.5 in
Height	87.6 in
Internal Depth	31 in
Refrigerator Capacity	33 cu. ft.
Internal Height	67 in
Width	31.75 in
Internal Width	27.75 in
Shipping Weight	526 lbs
Additional Model Specifications	450 ML Bags # Units 600 Number of Drawers 8 Number of Casters 4 Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 230/50/1 NEMA Plug Configuration Power Inlet (IEC 60320) Module NEMA Receptacle Cord Supplied Locally Total Amp Draw 3.2

Depth	35.5 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	52 cu. ft.
Internal Height	59 in
Width	55 in
Internal Width	51 in
Shipping Weight	802 lbs
Additional Model Specifications	450 ML Bags # Units 832 Number of Drawers 16 Number of Casters 4 Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 8.0
