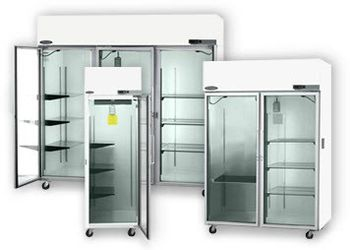

Nor-Lake - Chromatography Laboratory and Scientific Refrigerators

Manufactured by Nor-Lake

No Documents

Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design...

Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical, and industrial applications.

Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features of Chromatography Laboratory and Scientific Refrigerators

Exterior front, sides and back are painted white

Exterior back and bottom are galvanized steel

Interior is painted white

Glass doors, full size, double pane

Adjustable control range: +2°C to +10°C, factory preset at +4°C

Top mount refrigeration system

UL, C-UL listed

General Specifications

There are no General Specifications available.

Series Modals

Nor-Lake - NSCR241WWG/0

[+] View Model Specifications

Nor-Lake - NSCR241WWG/5

[+] View Model Specifications

Nor-Lake - NSCR331WWG/0

[+] View Model Specifications

Nor-Lake - NSCR331WWG/5

[+] View Model Specifications

Nor-Lake - NSCR522WWG/0

[+] View Model Specifications

Nor-Lake - NSCR522WWG/5

[+] View Model Specifications

Nor-Lake - NSCR803WWG/0

[+] View Model Specifications

Nor-Lake - NSCR803WWG/5

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	35.5 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	24 cu. ft.
Internal Height	59 in
Width	27.5 in
Internal Width	23.5 in
Number of Shelves	3
Shipping Weight	330 lbs
Additional Model Specifications	Number of Casters 4 (2 locking) Condensing Unit Size 1/4 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 4.9

Depth	30 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	24 cu. ft.
Internal Height	59 in
Width	27.5 in
Internal Width	23.5 in
Number of Shelves	3
Shipping Weight	330 lbs
Additional Model Specifications	Number of Casters 4 (2 locking) Condensing Unit Size 1/4 HP Refrigerant R-134a Total Amp Draw 3.2

Depth	36.5 in
Height	87.6 in
Internal Depth	31 in
Refrigerator Capacity	33 cu. ft.
Internal Height	67 in
Width	31.75
Internal Width	27.75 in
Number of Shelves	3
Shipping Weight	396 lbs
Additional Model Specifications	Number of Casters 4 (2 locking) Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 8.6

Depth	36.5 in
Height	87.6 in
Internal Depth	31 in
Refrigerator Capacity	33 L
Internal Height	67 in
Width	31.75 in
Internal Width	27.75 in
Number of Shelves	3
Shipping Weight	396 lbs
Additional Model Specifications	Number of Casters 4 (2 locking) Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 230/50/1 NEMA Plug Configuration Power Inlet (IEC 60320) Module NEMA Receptacle Cord Supplied Locally Total Amp Draw 3.2

Depth	35.5 in
Height	79.6 in
Internal Depth	30 in
Refrigerator Capacity	52 cu. ft.
Internal Height	59 in
Width	55 in
Internal Width	51 in
Shipping Weight	536 lbs
Additional Model Specifications	Epoxy Coated Shelves 3 Solid Stainless Steel Shelves halfsize 3 Number of Casters 4 (2 locking) Condensing Unit Size 1/3 HP Refrigerant R-134a Voltage Description 115/60/1 NEMA Plug Configuration 5-15P NEMA Receptacle 5-15R Total Amp Draw 8.0
