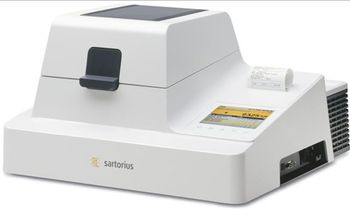

Sartorius Group - LMA200PM-000US

Manufactured by  Sartorius Group
Follow this Equipment

If the sample contains a high moisture content, microwave drying is the fastest and most effective procedure...

If the sample contains a high moisture content, microwave drying is the fastest and most effective procedure (loss-on-drying) for heating samples. A sample is heated by absorption of microwave radiation. A built-in analytical weighing system measures the weight loss of a sample and determines the end point at which the sample has reached a constant weight. In addition, an air moisture sensor monitors the progress of a moisture analysis run, thus providing double the certainty to assure reliable results.
Active Questions & AnswersAsk a Question

There are no current Discussions

Moisture Analyzers Service ProvidersView All (3)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of LMA200PM-000US
  • Can be used for liquid and pasty samples with a moisture content ranging from approx. 8 to 100%
  • Analysis time approx. 40 - 120 seconds (depends on type of sample and moisture content)
  • Easy two-key operation for routine moisture measurements
  • End-point determination: Fully automatic, by means of mass and moisture sensors; User-defined as loss of weight/unit of time for measurement; Timer mode
  • Built-in analytical weighing system with a capacity of 70 g and a resolution of 0.1 mg for weight values
General Specifications

There are no General Specifications available.

Additional Specifications

[u]Product properties[/u]
Heating source
Microwave radiation, for ultra short measuring times
Application
Very moist samples, fluid or pasty
Recommended moisture range
8 - 100%
Weighing capacity
70 g

[u]Technical attributes[/u]
Accuracy of the weighing system
0,0001g
Reproducibility (Repeatability) on average for initial sample weights of 1 g or higher (%)
+/- 0.05
Type of sample carrier
Glass fiber pads, diameter 90mm (3.5")
Display mode for results
% moisture, ppm moisture, % volatile components, % dry weight (solids), ppm dry weight, g dry weight, mg weight loss, % RATIO
Temperature range and settings
Approx. 8 - 100 % moisture
End-point determination
Fully automatic, by means of mass and moisture sensors; User-defined as loss of weight/unit of time: 1-50 mg / 1-99 sec., 0.1-9.9% / 1-99 sec.; Timer mode: 0.1 - 99.9 min.
Analysis time
Approx. 40-120 (depends on type of sample and moisture content)
Data Printer
Thermal printer, built-in
Moisture measurement report
User-configured GLP report: The report can be printed on non-fading paper by the built-in thermal printer
Data interface
1x RS232 port for PC; 1x Ethernet port
Line frequency
50 Hertz
Width
20 x 21 x 12 inch
Max. power consumption
1200 VA
