Kinematica - POLYMIX® PX-HT
Manufactured by Kinematica
No Documents
The POLYMIX® PX-HT (High-throughput) stirrer for processing of high viscous products includes drive and unique...

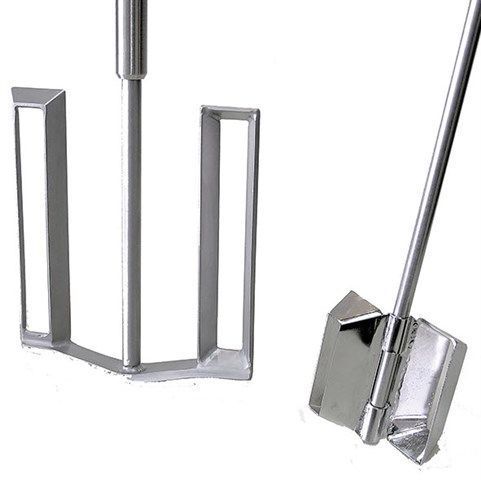

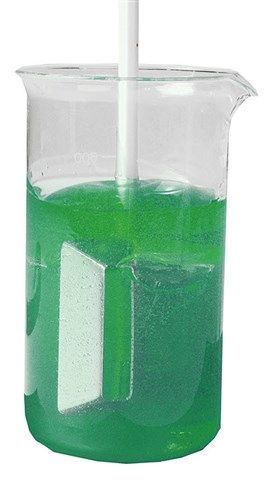

The POLYMIX® PX-HT (High-throughput) stirrer for processing of high viscous products includes drive and unique KINEMATICA POLYMIX® KD-stirrer, drive holder, vessel holder and ST-P 20/600 plate-stand.
Active Questions & AnswersAsk a Question
There are no current Discussions
Overhead Stirrers Service ProvidersView All (4)
Documents & Manuals
There are no Documents or Manuals available.
Features of POLYMIX® PX-HT
General Specifications
| Depth | 80 mm |
| Height | 196 mm |
| Width | 230 mm |
| Stirring Speed Range | 20 to 1200 rpm |
| Weight | 2.9 kg |
Additional Specifications
Application volume (ml) max (water)
70 000 ml
Motor input power (W)
190 W
supply voltage (V)
230 V ± 10%, 50 Hz
supply voltage (V)
110 - 120 V ± 10%, 60 Hz
Speed display (digital / scale)
Graduated scale
Relative humidity max. (%) Storage
80 %
Relative humidity max. (%) Operating
80 %
Operating ambient temperature (° C)
0 - 40
Protection class according to DIN (IP)
IP 40
Viscosity cP accuracy + / -1% of measuring range
up to 100,000 mPa·s
