Kinematica - POLYMIX® PX-MFC 90 D

Manufactured by  Kinematica
Follow this Equipment
Manuals & Documents

No Documents

The PX-MFC 90 D is suitable for dry sample grinding in the laboratory and comes complete with a powerful three-phase...

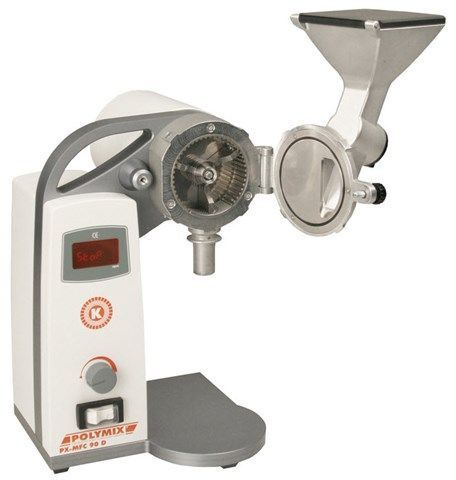

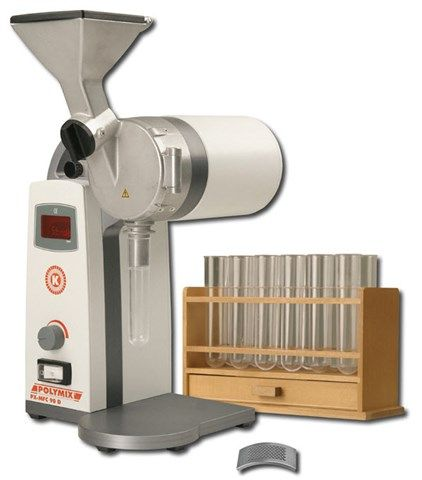

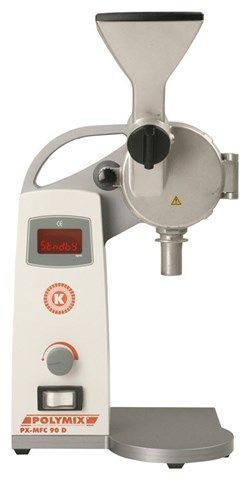

The PX-MFC 90 D is suitable for dry sample grinding in the laboratory and comes complete with a powerful three-phase motor, an integrated frequency converter with LED display, a dual use grinding chamber that permits easy conversion from one type of mill to the other and a base frame with integrated handle.
Active Questions & AnswersAsk a Question

There are no current Discussions

Mills and Grinders Service ProvidersView All (1)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of POLYMIX® PX-MFC 90 D
  • Hopper volume of 300 ml which can accommodate both dense and light, fluffy samples.
  • 1000 Watt, 3-phase motor provides a low noise level during operation, with 230Volt connection
  • Hammer and/or Cutting Mill sets, selected based on the type of sample
  • Sieves from 0.2 to 6 mm mesh size for desired particle sizes
  • Integrated speed control with LED display for speed and status messages
  • Speeds from 50 to 6,000 RPM for maximum grinding efficiency
  • The motor cannot be operated when the chamber door is open
  • Integrated overheating, overload and rotor blocking protection
  • Specially designed rod for the safe introduction of difficult samples
  • If the door is opened during operation for any reason, the motor is stopped.
  • Grinding chamber with hopper and rotary slide for product dosing, outlet can accommodate collection tube or vessel with NS29 standard ground joints
  • Mill can be easily converted to hammer or cutting mill due to the interchangeable grinding sets
  • Aluminium anodized base frame with integrated handle for easy carrying
    • General Specifications
    Depth 251 mm
    Height480 mm
    Width 325 mm
    Weight12 kg
    Additional Specifications

    Application volume (ml) max (water)
    Hopper 300 ml
    Motor input power (W)
    1'000 W
    speed range (rpm/min-1)
    50 to 6'000
    Motor type
    Motor 3 phases
    supply voltage (V)
    230 V ± 10%, 50 Hz
    supply voltage (V)
    110 - 120 V ± 10%, 60 Hz
    Speed display (digital / scale)
    Digital
    Speed display (digital / scale)
    stepless
    Sound Level (dB A) (drive only at 20,000 min-1)
    72 (6'000) dBA
    Relative humidity max. (%) Storage
    95 %
    Relative humidity max. (%) Operating
    95 %
    Operating ambient temperature (° C)
    0 to 40
    Protection class according to DIN (IP)
    IP 20
    Standard
    IEC/EN 61000-6-2 / EN 61000-6-3
    Safety standard
    IEC/EN 61010-2-51
