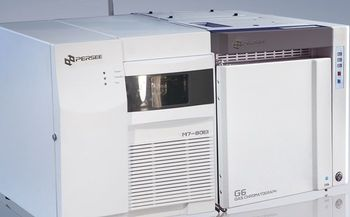

PERSEE - M7 Single Quadrupole GCMS

Manufactured by  PERSEE
Follow this Equipment

The M7 is an accurate, reliable and precise system which is suitable to both routine analysis and precision research ...

The M7 is an accurate, reliable and precise system which is suitable to both routine analysis and precision research applications. It can work with different manufacturers’ GC systems.

The M7 MS can be widely used in food safety, environmental protection, material chemical industry, life science, medicinal research, criminal investigation and many other fields. These applications benefit from its high performance, long service life, and PERSEE’s stron after-sales service.

Active Questions & AnswersAsk a Question

There are no current Discussions

GC Systems Service ProvidersView All (42)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of M7 Single Quadrupole GCMS
  • User-friendly design makes the maintenance much easier
  • Compatible with different brand and model GC system
  • The powerful GCMS workstation is intuitive, simple and easy to operate. The unique remote control function enables powerful technical support
  • Competitive price and maintenance cost
General Specifications

There are no General Specifications available.

Additional Specifications

GC&MS Interface:
Capillary direct interface, independent temperature control, 50-300 degrees C

Filament: Dual for EI, maximum emitting current 300uA

Ionization energy: 10-100eV adjustable

Ion Source Temperature: Independent temperature control, maximum 350 degrees C, adjustable

Mass Analyzer: High precision metal Molybdenum Quadrupole with pre-quadrupole

Backing pump: Mechanical pump, geometric pumping speed 165L/min

Turbo pump: Turbo molecular pump, pumping speed 71L/s, 260L/s optional

Detector: Electron multiplier

Mass range: 1.5-1050u

Mass accuracy: +/-0.1u

Resolution (R): Unit mass resolution

Signal to Noise Ratio (E):

  • 1 pg OFN ful scanning, 150:1 RMS at m/z 272
  • 100 fg OFN selection ion scanning, 150:1 RMS at m/z 272

Mass Stability: +/- 0.1u/48h

Maximum scanning speed: 11000u/s
