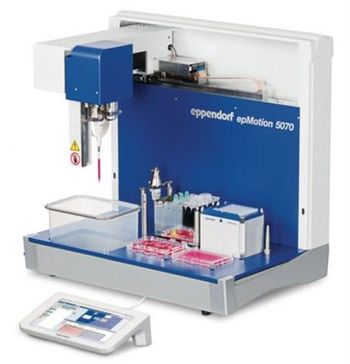

EPPENDORF - epMotion® 5070f
Manufactured by EPPENDORF
No Documents
The epMotion 5070f is an automated pipetting system for cell culture applications allowing all of the benefits of...
The epMotion 5070f is an automated pipetting system for cell culture applications allowing all of the benefits of automated pipetting to be available for Liquid Handling tasks inside a laminar flow or fume hood. Cell maintenance is one of the most repetitive tasks in life science research. The epMotion 5070f allows you to automate key processes such as seeding cells, media changes, or performing cytotoxicity tests. It enables you to handle 6-, 24- or 48-well plates or even denser formats from 96 to 384 wells. Almost all single tube sizes such as cryotubes®, Eppendorf Safe-Lock and conical tubes up to 50 mL are supported.
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & Manuals
There are no Documents or Manuals available.
Features of epMotion® 5070f
- 4 ANSI/SBS worktable and 3 virtual positions * Maximum pipetting accuracy from 1 to 1,000 ΜL * Calibrated 1-channel and 8-channel pipetting tools * Optical sensor1 for detecting liquids, labware, tips Compatible with tubes (0.2 mL to 50 mL) and microplates with up to 384 wells * Automatic exchange of two pipetting tools * Light barrier beam - monitors the closure of the bench hood for safety * Pre-programmed cell culture labware * Optional software extensions for handling samples with barcodes or for integration to LIMS & ELN * Option for compact EasyCon tablet or MultiCon PC controller by touch, mouse or keyboard, upgradable for barcode tracking and GLP/GMP software versions
General Specifications
| Depth | 48 cm |
| Height | 63 cm |
| Width | 65 cm |
| Weight | 33 kg |
Additional Specifications
Operation
electronic
Pipetting type
air-cushion
SLAS/ANSI deck positions
4
Volume range
1?µL?–?1?mL
Power supply
100?–?240 V ±10 %, 50?–?60 Hz ±5 %
Max. power consumption
150 W
