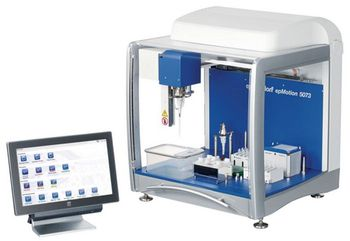

EPPENDORF - epMotion® 5073m
Manufactured by EPPENDORF
No Documents
The epMotion 5073m: 2 systems in one. First, a perfect system for automated nucleic acid purification of 1 to 24...
The epMotion 5073m: 2 systems in one. First, a perfect system for automated nucleic acid purification of 1 to 24 samples with special MagSep reagents. The Eppendorf EasyCon tablet or MultiCon PC and Prep Assistant software provide simple operation with step-by-step guidance through the process. Secondly, it is a flexible system for automating time-consuming and complex pipetting procedures with the epBlue™ software, making routine Liquid Handling tasks easier than ever. The pipetting procedure is more precise, reproducible and fully standardized, making your workplace more ergonomic and safer. The customized epMotion M5073 is delivered with all accessories required for nucleic acid purification; only consumables need to be ordered separately.
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & Manuals
There are no Documents or Manuals available.
Features of epMotion® 5073m
- 6 ANSI/SLAS microplate positions * Software assistants for simple, step-by-step application programming * Optical sensor for detecting liquids, labware, tips * Automatic replacement of 2 pipetting tools * Volume range of 1 to 1,000 ΜL for maximum pipetting accuracy * 3D-MagSep technology, mixing, tempering, and magnetic separation all at one location * Calibrated 1-channel and 8-channel pipetting tools * Optional UV lamp and HEPA filter system for decontamination and clean air conditions * Compatible with tubes (0.2 to 50 mL) and microplates with up to 384 wells * Option for compact EasyCon tablet or MultiCon PC controller by touch, mouse or keyboard, upgradable for barcode tracking and GLP/GMP software versions
General Specifications
| Depth | 61 cm |
| Height | 67 cm |
| Width | 65 cm |
| Weight | 57 kg |
Additional Specifications
Gripper carrying capacity
1,200 g
Operation
electronic
Pipetting type
air-cushion
Noise level
~ 56 dB(A)
Volume range
1 µL – 1 mL
Power supply
100?–?240 V ±10 %, 50 – 60 Hz ±5 %
Max. power consumption
600 W
