A&D Weighing - FX-IWP Series
Manufactured by A&D Weighing

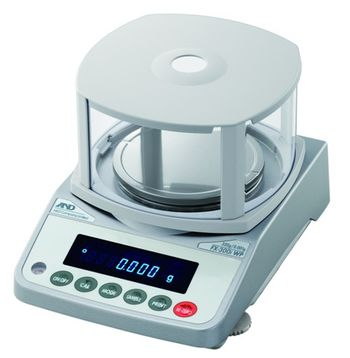

The FX-iWP is the first Water proof/Dust proof, 0.001 g compact precision balance.
The FX-iWP is the first Water proof/Dust proof, 0.001 g compact precision balance. The FX-iWP incorporates the reduced size Compact Super-Hybrid Sensor (SHS), which provides quick (one second) readings with high precision. The new Statistical Calculation Function (SCF) provides statistical data display or output of weighed samples.
Active Questions & AnswersAsk a Question
There are no current Discussions
Balances Service ProvidersView All (23)
Documents & ManualsView All Documents
Features of FX-IWP Series
- IP65 Water proof/Dust Proof
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Multiple Weighing Units(g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
- SCF-Statistical Calculation Function
- Quick USB Interface (FXi-02)
- Standard RS-232C Interface
- Comparator Function
- Digital Calibration Function
- LAN-Ethernet Interface (FXi-08) with WINCT-Plus Software
- 5 Year Warranty
- Animal Weighing Pan (Option)
General Specifications
There are no General Specifications available.
Series Modals
A&D Weighing - FX-1200iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 150 mm |
| Plate Width | 150 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Precision Balance |
| Capacity | 1220 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232 |
| Linearity | 0.02 g |
| Minimum Load | 0.01 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 1220.84 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 1000 g, 500 g Dust and water protection: Complying with IP65 |
A&D Weighing - FX-120iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 130 mm |
| Plate Width | 130 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Precision Balance |
| Capacity | 122 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232C |
| Linearity | 0.002 g |
| Minimum Load | 0.001 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 122.084 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 100 g, 50 g Dust and water protection: Complying with IP65 |
A&D Weighing - FX-2000iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 150 mm |
| Plate Width | 150 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Precision Balance |
| Capacity | 2200 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232 |
| Linearity | 0.02 g |
| Minimum Load | 0.01 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 2200.84 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 2000 g, 1000 g Dust and water protection: Complying with IP65 |
A&D Weighing - FX-200iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 130 mm |
| Plate Width | 130 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Precision Balance |
| Capacity | 220 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232 |
| Linearity | 0.002 g |
| Minimum Load | 0.001 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 220.084 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 200 g, 100 g Dust and water protection: Complying with IP65 |
A&D Weighing - FX-3000iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 150 mm |
| Plate Width | 150 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Precision Balance |
| Capacity | 3200 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232 |
| Linearity | 0.02 g |
| Minimum Load | 0.01 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 3200.84 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 3000 g, 2000 g, 1000 g Dust and water protection: Complying with IP65 |
A&D Weighing - FX-300iWP
[+] View Model Specifications| Calibration | Automatic Internal |
| Depth | 262.5 mm |
| Height | 84.5 mm |
| Plate Depth | 130 mm |
| Plate Width | 130 mm |
| Width | 193 mm |
| Animal Weighing | 1 |
| Power Requirements | 230 VAC, 11 VA consumption |
| Balance Type | Microbalance |
| Capacity | 320 g |
| Weight | 2.5 kg |
| Draft Shield | Included |
| Interface | RS-232 |
| Linearity | 0.002 g |
| Minimum Load | 0.001 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Stabilization Time | 1 sec |
| Additional Model Specifications | Maximum display: 320.084 g Sensitivity drift (10-30°C): ±2 ppm/°C Display refresh rate: 5 times/second, 10 times/second or 20 times/second External calibration weight: 300 g, 200 g, 100 g Dust and water protection: Complying with IP65 |
