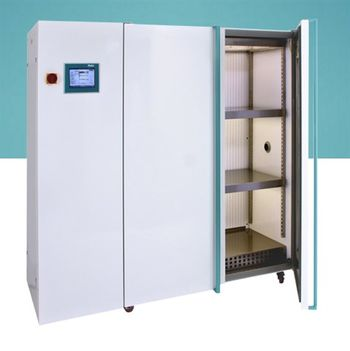

Hettich - Plant Growth Chambers

Manufactured by Hettich

Hettich Plant Growth Chambers Brochure

Room For Growth

Hettich LED Plant Growth Chambers use an advanced LED lighting system to increase throughputs and decrease operation costs. Their highly efficient LED lights deliver uniform lighting throughout the chamber and virtually eliminate dark corners for consistent results. The LED lights also emit minimal heat, allowing for more usable chamber space than tube-lighted plant growth chambers.

Active Questions & AnswersAsk a Question

There are no current Discussions

General Purpose Incubator Service ProvidersView All (29)

Request Support

Copia Scientific View Vendor

View All

Manuals & DocumentsFeaturesSpecifications

Documents & ManualsView All Documents

Hettich Plant Growth Chambers Brochure

Features of Plant Growth Chambers

Areas of Concentration

General Plant Research
Plant Pathology
Arabidopsis Research
Plant Tissue Culture
Seed Germination
Drosophila Research
Entomology
In Vitro Plant Growth

Advanced LED Lighting

Unique LED grid layout with adjustable LED outfitted shelves, provides 100% homogeneous white light throughout chamber for maximum growth and efficiency.

100% PAR light spectrum
Stable light intensity through LED lifespan at 200, 400 or 1,100 µmol
Independent switchable far-red lighting
Low heat output for growth up to 5 cm below LED lights

Even-Flow Air System

Uniform, horizontal airflow for a stable and homogeneous climate throughout chamber. Low airflow intensity prevents stress and dehydration.

The Chamber[/b

Ergonomic design makes chamber easy to install, service, access and clean.

White-coated interior doors for max. light reflection
Stainless steel floor with drain and hose
Units fit through standard doorway fully assembled
Easy-access service compartment

General Specifications

There are no General Specifications available.

Series Modals

Hettich - PRC 1200 SL
[+] View Model Specifications
Depth 53.3 in
Height 79.7 in
Width 35.8 in
Additional Model Specifications Temp Range:
10 - 45 °C

Interior Volume:
34.3 ft³(973 L)

Total Growth Area:
91.4 ft² (8.5 m²)

Number of Shelves:
15 shelves

LED Color/Spectrum:
White / Spectrum is 95% sunlight compatible

LED Light Intensity:
100 - 125 µmol

Hettich - PRC 1200 WL
[+] View Model Specifications
Depth 49.4 in
Height 79.7 in
Width 31.6 in
Additional Model Specifications Temp Range:
10 - 45 °C

Interior Volume:
34.1 ft³ (968 L)

Total Growth Area:
18.2 ft² (1.7 m²)

Number of Shelves:
3 shelves

LED Color/Spectrum:
White / Spectrum is 95% sunlight compatible

LED Light Intensity:
200, 400, or 1100 µmol

Hettich - PRC 1700 WL
[+] View Model Specifications
Depth 33.4 in
Height 79.3 in
Width 80.3 in
Additional Model Specifications Temp Range:
10 - 45 °C

Interior Volume:
51.7 ft³ (1,466 L)

Total Growth Area:
24.9 ft² (2.322 m²)

Number of Shelves:
3 shelves

LED Color/Spectrum:
White / Spectrum is 95% sunlight compatible

LED Light Intensity:
200, 400, or 1100 µmol

Hettich - PRC 3200 WL
[+] View Model Specifications
Depth 36.4 in
Height 86.9 in
Width 138.7 in
Additional Model Specifications Temp Range:
10 - 45 °C

Interior Volume:
110.3 ft³ (3,125 L)

Total Growth Area:
50 ft² (4.65 m²)

Number of Shelves:
6 shelves

LED Color/Spectrum:
White / Spectrum is 95% sunlight compatible

LED Light Intensity:
200, 400, or 1100 µmol

Hettich - PRC 600 WL
[+] View Model Specifications
Depth 38.9 in
Height 79.1 in
Width 27.9 in
Additional Model Specifications Temp Range:
10 - 45 °C

Interior Volume:
17.6 ft³ (500 L)

Total Growth Area:
10.3 ft² (0.96 m²)

Number of Shelves:
3 shelves

LED Color/Spectrum:
White / Spectrum is 95% sunlight compatible

LED Light Intensity:
200, 400, or 1100 µmol
