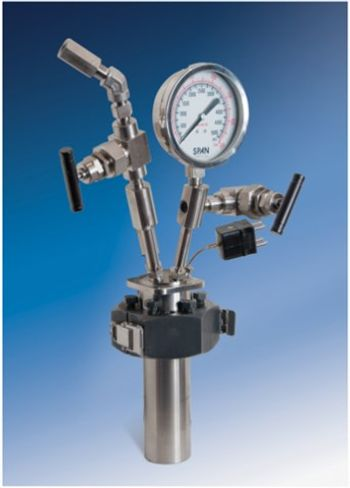

Parr Instrument Company - Series 4791-4793 General Purpose & High Pressure/High Temperature Pressure Vessels, 25-100 mL
Manufactured by Parr Instrument Company
General Purpose 4790 Series Vessels are available in volumes of 25, 50, and 100 mL, with temperatures up to 350 °C and...
General Purpose 4790 Series Vessels are available in volumes of 25, 50, and 100 mL, with temperatures up to 350 °C and maximum pressure of 3000 psi (200 bar). They come standard with dip tube, three valves, gage, rupture disc, and thermocouple.
The High Pressure/High Temperature version of these Vessels come in the same volumes of 25, 50, and 100 mL volumes but through a unique head redesign can achieve temperatures of 500 °C and maximum pressure of 5000 psi (350 bar). The HP/HT Vessels include two valves as standard.
Both the General Purpose and the HP/HT vessels are available as either moveable or fixed head design. Common to both are the Parr Split Ring closure with 6 cap screws.
The High Pressure/High Temperature version of these Vessels come in the same volumes of 25, 50, and 100 mL volumes but through a unique head redesign can achieve temperatures of 500 °C and maximum pressure of 5000 psi (350 bar). The HP/HT Vessels include two valves as standard.
Both the General Purpose and the HP/HT vessels are available as either moveable or fixed head design. Common to both are the Parr Split Ring closure with 6 cap screws.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Parr Instrument Company - 4791
[+] View Model Specifications| Weight | 7 lbs |
| Additional Model Specifications | Sizes:
25 mL Maximum Pressure (MAWP): 3000 psi (200 bar) Maximum Temperature with FKM O-Ring: 225 °C Maximum Temperature with FFKM O-Ring: 275 °C Maximum Temperature with PTFE – Flat Gasket: 350 °C Valve Connections: 3 – 1/8″ NPT Male Pressure Gage Size / Range: 3.5 inches / 0-3000 psi (200 bar) Closure: Screw Cap (6 Cap Screws) Temperature Measurement: Fixed Thermocouple Additional Fittings: Dip Tube and Rupture Disc Inside Diameter: 1 inch Inside Depth: 2 inches Mounting: Movable or Fixed Head |
Parr Instrument Company - 4792
[+] View Model Specifications| Weight | 7 lbs |
| Additional Model Specifications | Sizes:
50 mL Maximum Pressure (MAWP): 3000 psi (200 bar) Maximum Temperature with FKM O-Ring: 225 °C Maximum Temperature with FFKM O-Ring: 275 °C Maximum Temperature with PTFE – Flat Gasket: 350 °C Valve Connections: 3 – 1/8″ NPT Male Pressure Gage Size / Range: 3.5 inches / 0-3000 psi (200 bar) Closure: Screw Cap (6 Cap Screws) Temperature Measurement: Fixed Thermocouple Additional Fittings: Dip Tube and Rupture Disc Inside Diameter: 1.3 inch Inside Depth: 2.3 inches Mounting: Movable or Fixed Head |
Parr Instrument Company - 4793
[+] View Model Specifications| Weight | 8 lbs |
| Additional Model Specifications | Sizes:
100 mL Maximum Pressure (MAWP): 3000 psi (200 bar) Maximum Temperature with FKM O-Ring: 225 °C Maximum Temperature with FFKM O-Ring: 275 °C Maximum Temperature with PTFE – Flat Gasket: 350 °C Valve Connections: 3 – 1/8″ NPT Male Pressure Gage Size / Range: 3.5 inches / 0-3000 psi (200 bar) Closure: Screw Cap (6 Cap Screws) Temperature Measurement: Fixed Thermocouple Additional Fittings: Dip Tube and Rupture Disc Inside Diameter: 1.3 inch Inside Depth: 4.6 inches Mounting: Movable or Fixed Head |
