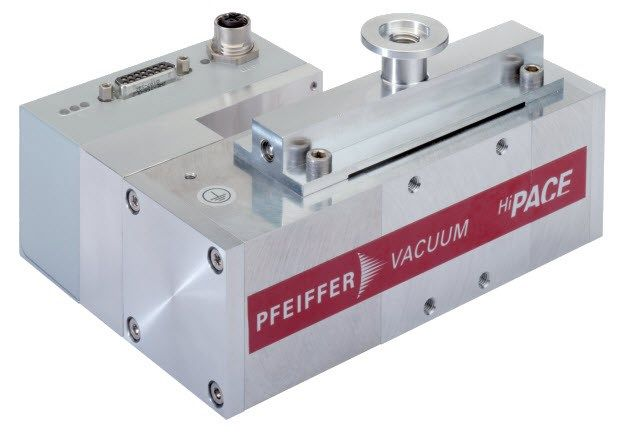

PFEIFFER VACUUM - HiPace® 10

Manufactured by PFEIFFER VACUUM

The small design makes for minimum footprint

Integrated drive electronics, suitable for industrial environments - Protection class IP54

Semi S2- and UL/CSA certification

Maximum reliability through monitoring of operating data

There are no current Discussions

Vacuum Pumps Service ProvidersView All (13)

Manuals & DocumentsFeaturesSpecifications

HiPace® 10 with TC 110, DN 25 and HiPace® 10 with TC 110 and twisted connection, DN 25

The world's smallest series-production turbopump

A powerful, rugged turbopump with a pumping speed of 10 l/s for N2

DN 25 connection

Integrated drive electronics with 24 V supply voltage

Mobile usable

Requires no additional cooling

Electronic connection in direction of fore-vacuum connection HiPace® 10 with TC 110 and power supply OPS 40, DN 25

The world's smallest series-production turbopump

A powerful, rugged turbopump with a pumping speed of 10 l/s for N2

DN 25 connection

Drive electronics TC 110 and power supply OPS 040 integrated

Mobile usable

Requires no additional cooling

Electronic connection in direction of fore-vacuum connection

There are no General Specifications available.

PFEIFFER VACUUM - HiPace® 10 with TC 110, DN 25

PFEIFFER VACUUM - TC 110 and power supply OPS 40

PFEIFFER VACUUM - TC 110 and twisted connection

Looking for New or Used Equipment?

Vacuum Pump Type	Turbomolecular Pump
Weight	1.8 kg
Ultimate Vacuum (partial)	0.0000375 Torr
Additional Model Specifications	Bearing: Ball bearing Compression ratio for Ar: 2.5 · 10⁸ Compression ratio for H₂: 3 · 10² Compression ratio for He: 3 · 10³ Compression ratio for N₂: 3 · 10⁶ Cooling method, standard: Convection Electronic drive unit: with TC 110 Flange (in): DN 25 Flange (out): DN 16 ISO-KF / G 1/8" Fore-vacuum max. for N₂: 25 hPa \| 18.75 Torr \| 25 mbar Gas throughput at full rotational speed for Ar: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Gas throughput at full rotational speed for H₂: 2.78 hPa l/s \| 2.08 Torr l/s \| 2.78 mbar l/s Gas throughput at full rotational speed for He: 0.48 hPa l/s \| 0.36 Torr l/s \| 0.48 mbar l/s Gas throughput at full rotational speed for N₂: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Interfaces: RS-485, Remote Mounting orientation: in any orientation Operating voltage: 24 (± 5 %) V DC Particulate matter: YES Permissible magnetic field max.: 3 mT Protection category: IP54 Pumping speed for Ar: 11.5 l/s Pumping speed for H₂: 3.7 l/s Pumping speed for He: 6 l/s Pumping speed for N₂: 10 l/s Rotation speed ± 2 %: 90,000 rpm \| 90,000 min^-1 Rotation speed variable: 50 - 100 % Run-up time: 0.9 min

Vacuum Pump Type	Turbomolecular Pump
Weight	2 kg
Ultimate Vacuum (with open gas ballast/purge)	0.0000375 Torr
Additional Model Specifications	Bearing: Hybrid Compression ratio for Ar: 2.5 · 10⁸ Compression ratio for H₂: 3 · 10² Compression ratio for He: 3 · 10³ Compression ratio for N₂: 3 · 10⁶ Cooling method, standard: Convection Electronic drive unit: with TC 110 Flange (in): DN 25 Flange (out): DN 16 ISO-KF / G 1/8" Fore-vacuum max. for N₂: 25 hPa \| 18.75 Torr \| 25 mbar Gas throughput at full rotational speed for Ar: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Gas throughput at full rotational speed for H₂: 2.78 hPa l/s \| 2.08 Torr l/s \| 2.78 mbar l/s Gas throughput at full rotational speed for He: 0.48 hPa l/s \| 0.36 Torr l/s \| 0.48 mbar l/s Gas throughput at full rotational speed for N₂: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Interfaces: RS-485, Remote Mounting orientation: in any orientation Operating voltage: 24 (± 5 %) V DC Particulate matter: YES Permissible magnetic field max.: 3 mT Protection category: IP54 Pumping speed for Ar: 11.5 l/s Pumping speed for H₂: 3.7 l/s Pumping speed for He: 6 l/s Pumping speed for N₂: 10 l/s Rotation speed ± 2 %: 90,000 rpm \| 90,000 min^-1 Rotation speed variable: 50 - 100 % Run-up time: 0.9 min

Vacuum Pump Type	Turbomolecular Pump
Weight	1.8 kg
Ultimate Vacuum	0.0000375 Torr
Additional Model Specifications	Bearing: Hybrid Compression ratio for Ar: 2.5 · 108 Compression ratio for H2: 3 · 102 Compression ratio for He: 3 · 103 Compression ratio for N2: 3 · 106 Cooling method, standard: Convection Electronic drive unit: with TC 110 Flange (in): DN 25 Flange (out): DN 16 ISO-KF / G 1/8" Fore-vacuum max. for N2: 25 hPa \| 18.75 Torr \| 25 mbar Gas throughput at full rotational speed for Ar: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Gas throughput at full rotational speed for H2: 2.78 hPa l/s \| 2.08 Torr l/s \| 2.78 mbar l/s Gas throughput at full rotational speed for He: 0.48 hPa l/s \| 0.36 Torr l/s \| 0.48 mbar l/s Gas throughput at full rotational speed for N2: 0.37 hPa l/s \| 0.28 Torr l/s \| 0.37 mbar l/s Interfaces: RS-485, Remote Mounting orientation: in any orientation Operating voltage: 24 (± 5 %) V DC Particulate matter: YES Permissible magnetic field max.: 3 mT Protection category: IP54 Pumping speed for Ar: 11.5 l/s Pumping speed for H2: 3.7 l/s Pumping speed for He: 6 l/s Pumping speed for N2: 10 l/s Rotation speed ± 2 %: 90,000 rpm \| 90,000 min-1 Rotation speed variable: 50 - 100 % Run-up time: 0.9 min
