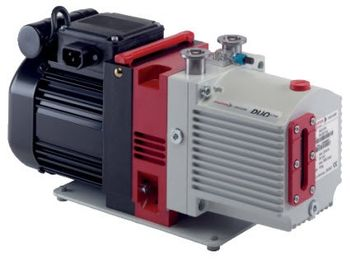

PFEIFFER VACUUM - Rotary vane pumps with pumping speed 1.25 - 30 m3/h

Manufactured by  PFEIFFER VACUUM
Follow this Equipment

For the Duo 1.6/M> Dual-stage, high-performance rotary vane pump with a pumping speed of 1...

For the Duo 1.6/M
  • Dual-stage, high-performance rotary vane pump with a pumping speed of 1.25 m3/h at 50 Hz / 1.50 m3/h at 60 Hz
  • With magnetic coupling
  • With single-phase motor with C14 connector plug inside the terminal box
  • Integrated gas ballast and safety valve
  • OME oil return device is included with the pump
  • For all low and medium vacuum applications
  • Special feature: various motor voltages for wide range of application fields
    • Active Questions & AnswersAsk a Question

    There are no current Discussions

    Vacuum Pumps Service ProvidersView All (13)

    Request Support
    Features of Rotary vane pumps with pumping speed 1.25 - 30 m3/h
    Duo 1.6/M    With Single-phase motor    For all low and medium vacuum applications    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment    Other motor voltages available on request    Optional with magnetic coupling        Duo 3/M    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment    The most compact pumps in this pumping speed class    Optional with magnetic coupling        Duo 6/M    Reliable, clean, low maintenance    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment    Optional with magnetic coupling        Duo 11/M    Reliable, clean, low maintenance    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment    Optional with magnetic coupling        Duo 5 M    Reliable, clean, low maintenance    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment        Duo 10 M    Reliable, clean, low maintenance    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment        Duo 20 M    Reliable, clean, low maintenance    Compact design - Excellent performance data    Contain no non- ferrous metals    Integrated safety and gas ballast valve    Special feature: Various motor voltages for worldwide emplyoment
    General Specifications
    Weight10.5 kg
    Additional Specifications

    Ambient temperature
    12 - 40 °C

    Cooling method, standard
    Air

    Emission sound pressure level without gas ballast at 50 Hz
    ? 48 dB (A)

    Exhaust pressure, max.
    1500 hPa

    Exhaust pressure, min.
    250 hPa

    Flange (in)
    DN 16 ISO-KF

    Flange (out)
    DN 16 ISO-KF

    Leak rate safety valve
    1 · 10-5 Pa m³/s

    Magnetic coupling
    Yes

    Mains cable
    No

    Mains requirement: voltage 50 Hz
    100-105 V

    Mains requirement: voltage 60 Hz
    110-130 V

    Motor version
    1-phase Motor

    Operating fluid
    P3

    Operating fluid filling
    0.4 l

    Protection category
    IP40

    Pumping speed at 50 Hz
    1,25 m3/h

    Pumping speed at 60 Hz
    1,50 m3/h

    Rated power 50 Hz
    0.075 kW

    Rated power 60 Hz
    0.09 kW

    Recommended mains fuse capacity
    2.5 A

    Rotation speed at 50 Hz
    1,500 rpm | 1,500 min-1

    Rotation speed at 60 Hz
    1,800 rpm | 1,800 min-1

    Switch
    Yes

    Ultimate pressure with gas ballast
    3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar

    Ultimate pressure without gas ballast
    3 · 10-3 hPa | 2.25 · 10-3 Torr | 3 · 10-3 mbar
