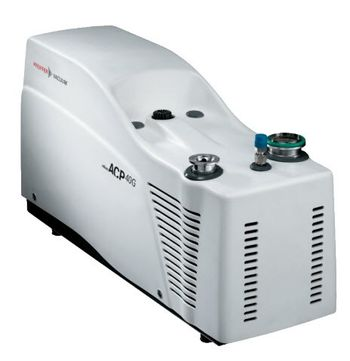

PFEIFFER VACUUM - Air Cooled G Versions
Manufactured by PFEIFFER VACUUM
G version pump is compatible with trace amounts of corrosive gases. Three jets located in the purge line help withstand...
G version pump is compatible with trace amounts of corrosive gases. Three jets located in the purge line help withstand trace amounts of corrosive chemicals, protect the low and high pressure ball bearings. For optimal ball bearing protection, the neutral gas pressure must be set to 0.3 bar (relative pressure) according to the flow rate value provided in technical data.
Customer value
Air cooling: no water supply required
Frequency converter: hour meter, remote operation mode (RS-485, dry contacts, Profibus on request), multiple rotational speed selection (power saving, noise reduction, adaptation to application cycle)
Universal power supply: wide voltage range 50/60 Hz, single-phase and three-phase
Standards: compliance with CE standards, UL/CSA certified, SEMI S2 certified
Customer value
Active Questions & AnswersAsk a Question
There are no current Discussions
Vacuum Pumps Service ProvidersView All (13)
Documents & ManualsView All Documents
Features of Air Cooled G Versions
[u]ACP 15 G: Product description[/u]
Dry multi-stage Roots technology, G versions, ACP pumps with a pumping speed of max. 15 m3/h
No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
No hydrocarbon vapors backstreaming: ACP series pumps are free of lubricant inside the pumping module
Constant performances (Pumping speed, max. and ultimate pressure)
High reliability: thanks to our expertise of dry multi-stage Roots pumps since 1988
Low maintenance costs: no annual field service, complete overhaul only every 20000 hours for ACP 15
Condensable vapor ability: with gas ballast ports and drainable silencer
Product Options
ACP 15, G version, single-phase, purge port R 1/4" (V5GATSRFEF)
ACP 15, G version, three-phase, purge port R 1/4" (V5GATSRTRF)
[u]ACP 28 G: Product description[/u]
Dry multi-stage Roots technology, G versions, ACP pumps with a pumping speed of max. 28 m3/h
No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
No hydrocarbon vapors backstreaming: ACP series pumps are free of lubricant inside the pumping module
Constant performances (Pumping speed, max. and ultimate pressure)
High reliability: thanks to our expertise of dry multi-stage Roots pumps since 1988
Low maintenance costs: no annual field service, complete overhaul only every 22000 hours for ACP 28/40
Condensable vapor ability: with gas ballast ports and drainable silencer. ACP series pumps can handle up to 1000 g/h of pure water vapor.
Product Options
ACP 28, G version, single-phase, purge port R 1/4" (V6GATSFEBF)
ACP 28, G version, three-phase, purge port R 1/4" (V6GATSTRBF)
[u]ACP 40 G: Product description[/u]
Dry multi-stage Roots technology, G versions, ACP pumps with a pumping speed of max. 40 m3/h
No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
No hydrocarbon vapors backstreaming: ACP series pumps are free of lubricant inside the pumping module
Constant performances (Pumping speed, max. and ultimate pressure)
High reliability: thanks to our expertise of dry multi-stage Roots pumps since 1988
Low maintenance costs: no annual field service, complete overhaul only every 22000 hours for ACP 28/40
Condensable vapor ability: with gas ballast ports and drainable silencer. ACP series pumps can handle up to 1000 g/h of pure water vapor.
Product Options
ACP 40, G version, single-phase, purge port R 1/4" (V8GACSFEBF)
ACP 40, G version, three-phase, purge port R 1/4" (V8GACSTRBF)
