Labconco - FreeZone Series with Stoppering Tray Dryers
Manufactured by Labconco
FreeZone 6 Liter Benchtop Freeze Dry System is designed for light to moderate aqueous sample loads. This model is not...
FreeZone 6 Liter Benchtop Freeze Dry System is designed for light to moderate aqueous sample loads. This model is not for use with samples containing acetonitrile. Removes a maximum of 4 liters of water in 24 hours.* Includes brushed stainless steel and powder-coated steel exterior; stainless steel collector chamber and coil; LCD that displays system operating parameters, set-up parameters and alarm messages (choice of temperature in °C and ° F, choice of vacuum in mBar, Pa and Torr); 3/4 hp CFC-free refrigeration system; red alarm light; LED vacuum and temperature wave graphs; patented moisture sensor; vacuum control/break valve; rear-mounted RS-232 port; automatic start-up switch for collector cool-down and vacuum pull-down with manual override switches; retractable collector drain line; 3" diameter port for connection of drying accessory; power switch; rear-mounted electrical receptacle for vacuum pump connection (pump not included); 3/4" OD vacuum connection; 3/4" ID vacuum hose; and two clamps.
* Freeze drying rate will be lower for samples other than shell-frozen plain water. For optimum performance, room temperature should be 21° C (70° F) or colder.
* Freeze drying rate will be lower for samples other than shell-frozen plain water. For optimum performance, room temperature should be 21° C (70° F) or colder.
Active Questions & AnswersAsk a Question
There are no current Discussions
Freeze Dryers / Lyophilizers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Conformance:
CAN/CSA C22.2, UL
Options Included:
Stoppering Tray Dryer
Plug Type:
North America, 115 volt, 20 A
Vacuum Pump Displacement Required:
98 L/Min or larger displacement
Series Modals

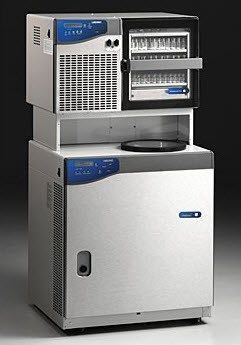

Labconco - 12 Liter Console
[+] View Model Specifications| Depth | 31 in |
| Height | 63.4 in |
| Width | 32.2 in |
| Power Requirements | 230 volts, 60 Hz, 8 A, 230 volts, 60 Hz, 9.0 A |
| Orientation | Floor Standing |
| Weight | 697 lbs |
| Part Number | 7759040 |
| Collector Temperature | -58 °F |
| Ice Holding Capacity | 12 L |
| Additional Model Specifications | Options Included: Stoppering Tray Dryer
Plug Type: North America, 230 volt Conformance: CAN/CSA C22.2, UL Plug Type: North America, 230 volt Vacuum Pump Displacement Required: 98 L/Min or larger displacement |

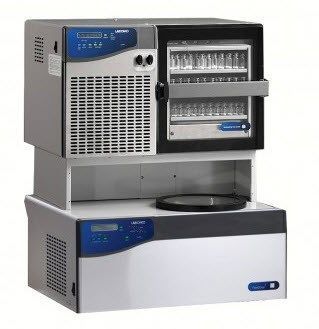

Labconco - 6 Liter Benchtop
[+] View Model Specifications| Depth | 31.1 in |
| Height | 40.6 in |
| Width | 32 in |
| Power Requirements | 115 volts, 60 Hz, 16.0 A |
| Orientation | Benchtop |
| Weight | 572 lbs |
| Part Number | 7758020 |
| Collector Temperature | -58 °F |
| Ice Holding Capacity | 6 L |
| Additional Model Specifications | Options Included: Stoppering Tray Dryer
Plug Type: North America, 115 volt, 20 A Conformance: CAN/CSA C22.2, UL Vacuum Pump Displacement Required: 98 L/Min or larger displacement |

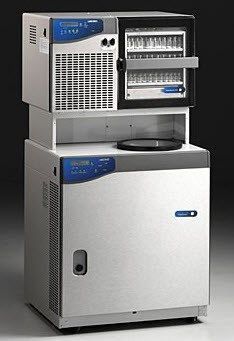

Labconco - 6 Liter Console
[+] View Model Specifications| Depth | 31 in |
| Height | 63.4 in |
| Width | 32.2 in |
| Power Requirements | 115 volts, 60 Hz, 16.0 A, 115 volts, 60 Hz, 16.0 A |
| Orientation | Floor Standing |
| Weight | 676 lbs |
| Part Number | 7758520 |
| Collector Temperature | -58 °F |
| Ice Holding Capacity | 6 L |
| Additional Model Specifications | Options Included: Stoppering Tray Dryer
Plug Type: North America, 115 volt, 20 A Conformance: CAN/CSA C22.2, UL Vacuum Pump Displacement Required: 98 L/Min or larger displacement |
