BrandTech Scientific - BRAND Liquid Handling Station

Manufactured by  BrandTech Scientific
Follow this Equipment

The BRAND Liquid Handling Station pipetting robot handles routine tasks at high speed and with the highest precision....

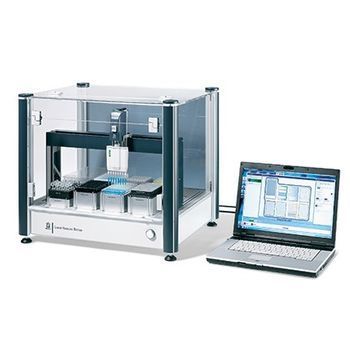

The BRAND Liquid Handling Station pipetting robot handles routine tasks at high speed and with the highest precision. The LHS closes the gap between electronic pipettes and highly complex, expensive pipetting robots. It is a quiet and compact instrument with a unique front door allowing it be set up in tight quarters. The instrument has 7 working positions and 5 available liquid ends with single channel volumes up to 1000uL and multichannel volumes up to 300uL. The system has the flexibility to move liquids between reservoirs, tubes, and plates. Adapters and racks bring the consumables to an even height, reducing unnecessary vertical movements to save time during pipetting.

Applications:
  • Preparation of ‘assay ready’ plates
  • PCR, qPCR, and ELISA Set-up
  • Serial dilutions
  • Microplate Replication and Reformatting
  • DNA Normalization
  • Cherry Picking
  • Cell Cultures
  • General Liquid Transfers

    The BRAND Liquid Handling Station includes the motor control unit, operating software, user manual, power cable, USB cable, documentation, on-site training, and a 1 year warranty. Liquid ends, racks, adapters, consumables, and additional service plans are sold separately. Operating computer to be supplied by end user.
    • Active Questions & AnswersAsk a Question

    There are no current Discussions

    Liquid Handling Service ProvidersView All (10)

    Request Support
    Copia ScientificView Vendor
    View All
    Documents & Manuals

    There are no Documents or Manuals available.

    Features

    There are no Features available.

    General Specifications

    There are no General Specifications available.

    Additional Specifications

    Liquid Ends:
    1-channel Liquid Ends (SC), 8-channel Liquid Ends (MC)

    Volume Ranges:
    1-channel Liquid Ends: 1 - 50µl, 10 - 200µl, 40 - 1000µl
    8-channel Liquid Ends: 1 - 50µl, 20 - 300µl

    Working positions:
    8 working positions: P2 - P8, P1 for waste box

    Operating temperature:
    +15°C to +35° C

    Transport temperature:
    -20°C to +65° C

    Supply Voltage:
    100 - 240 V, 50/60 Hz

    Fuse:
    2 x T 2.5A H 250V

    Interfaces:
    1 USB

    Power consumption:
    max. 150W

    Protection class:
    Protection class I

    Housing:
    Protection class IP20

    Safety standards:
    IEC 61010-1

    EMC compatibility:
    Radio interference and interference resistance compliant with DIN EN 61 326-1

    Noise level:
    46 dB
